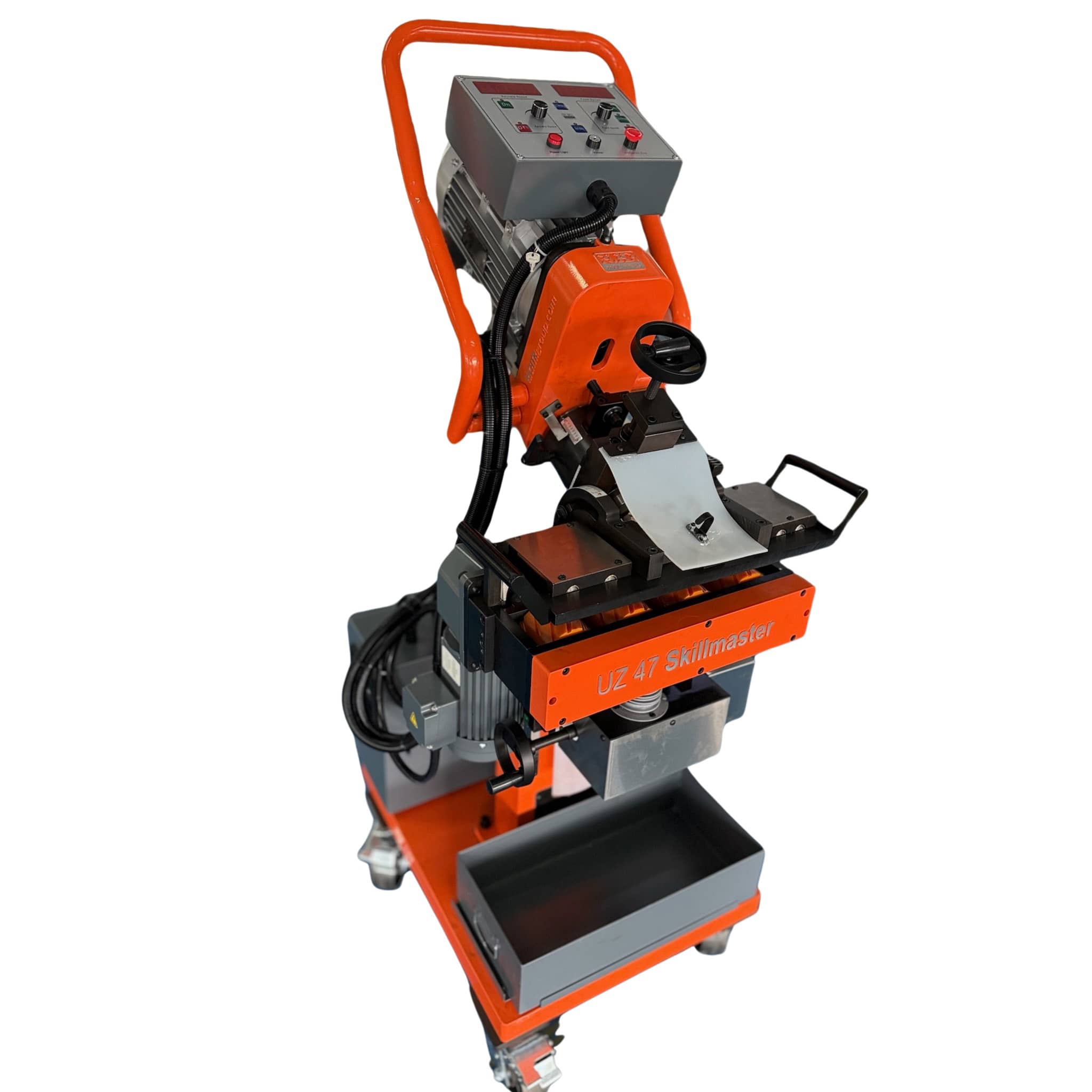

UZ47 SKILLMASTER

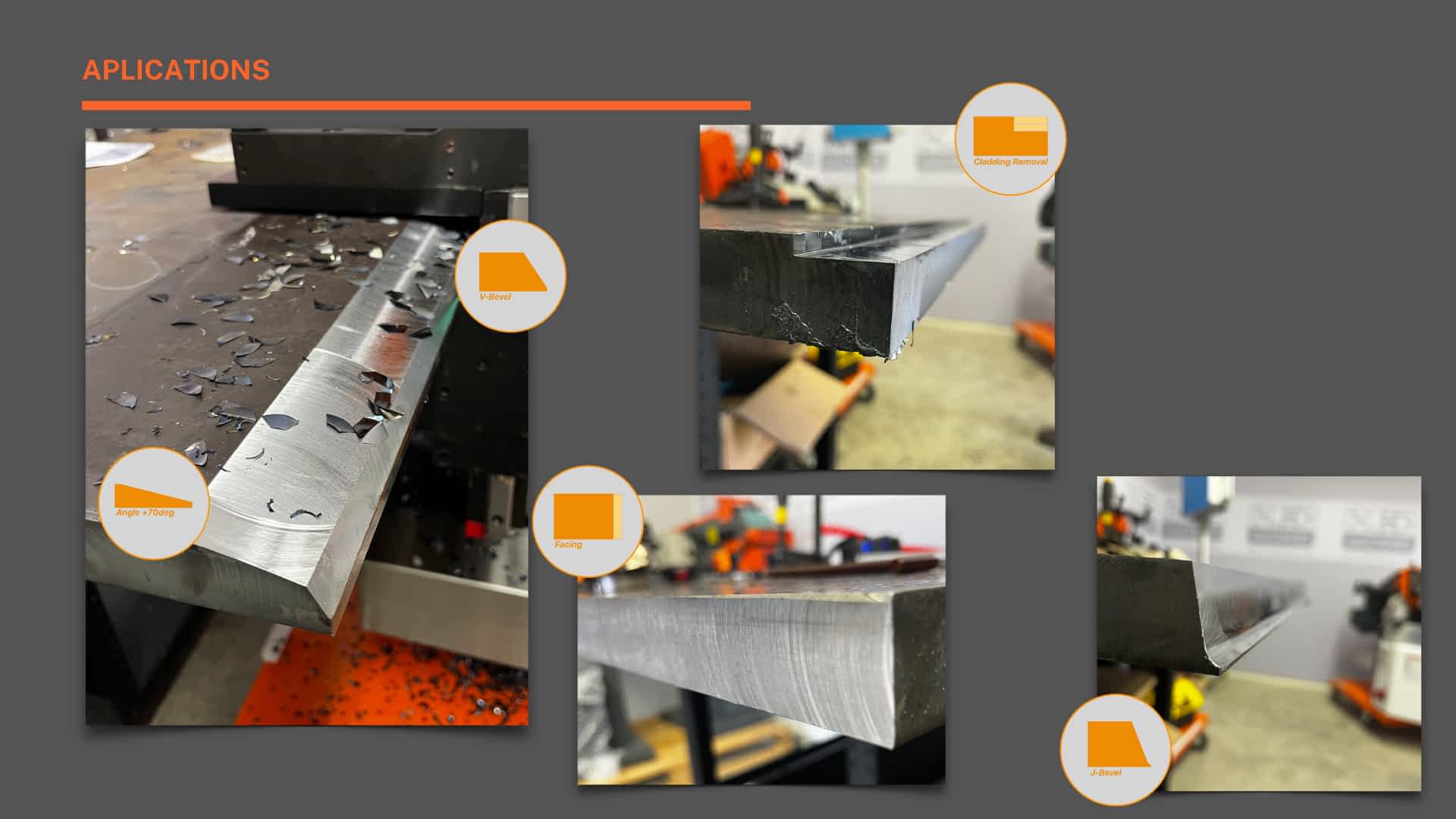

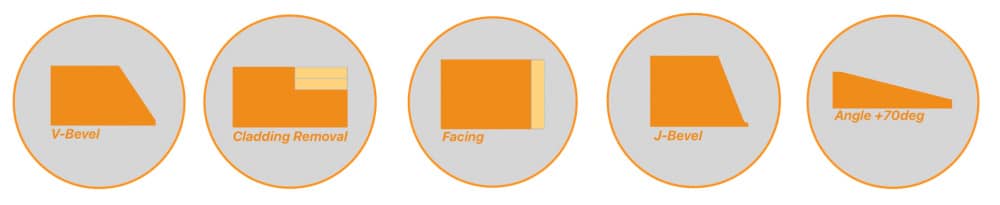

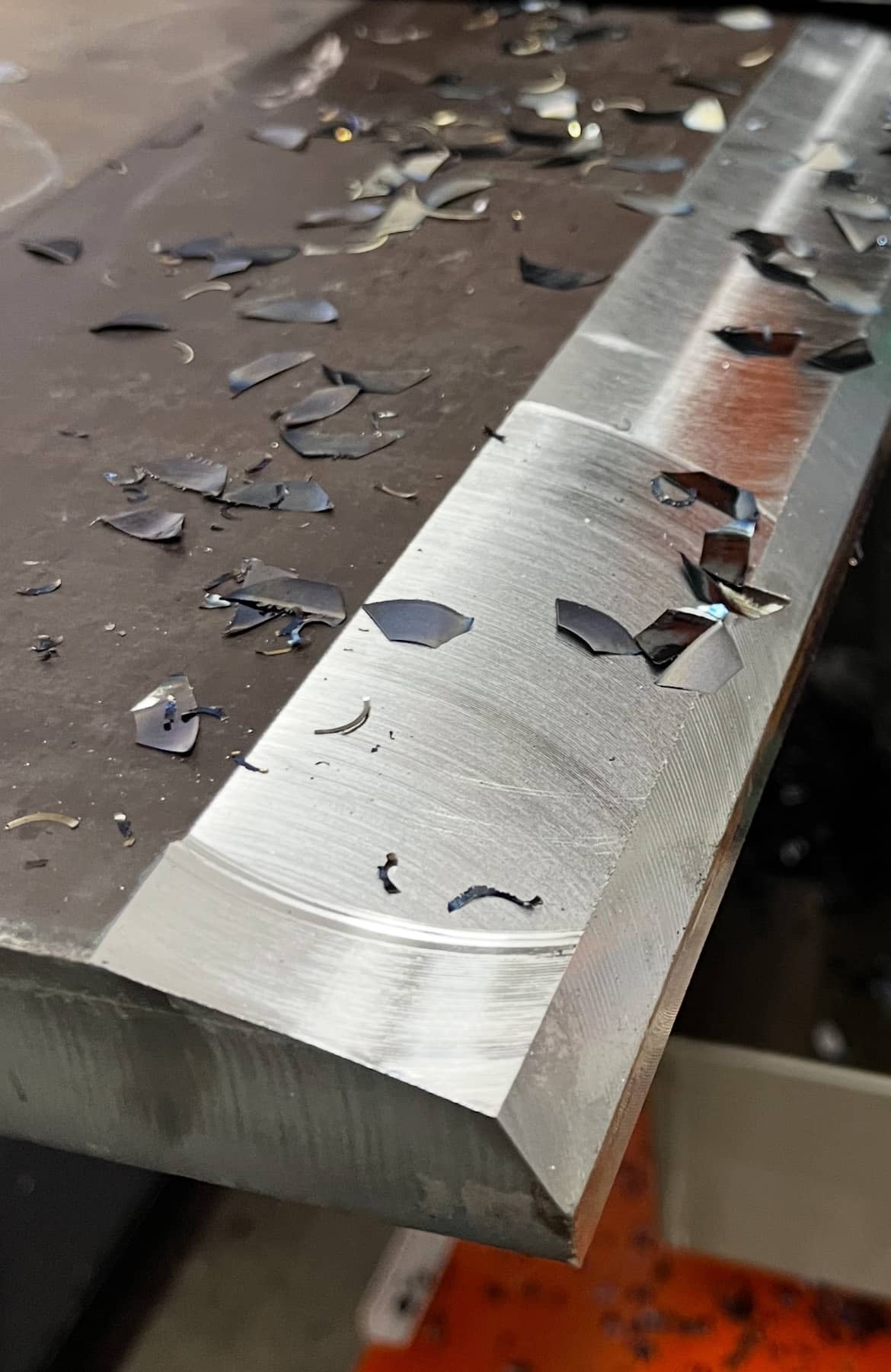

Compact multi-purpose bevelling: Automatic feed system for V-bevel, J-bevel and custom chamfers up to +70°, ideal for precision edge preparation

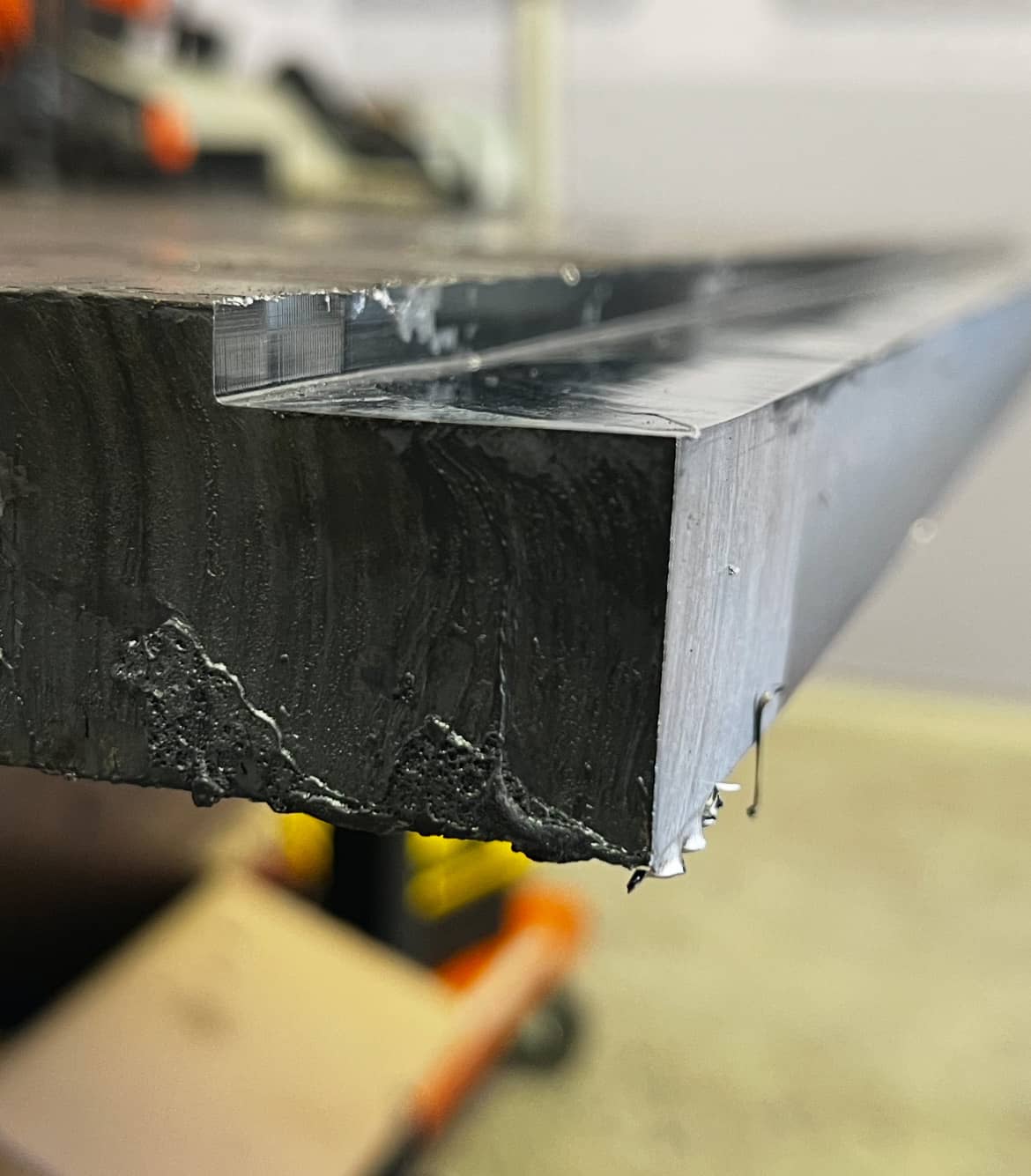

• High-performance stationary machine engineered for accurate bevelling, facing, and cladding removal
• Designed for machining structural and high-strength steels, stainless steels, and demanding materials like Hardox and Domex

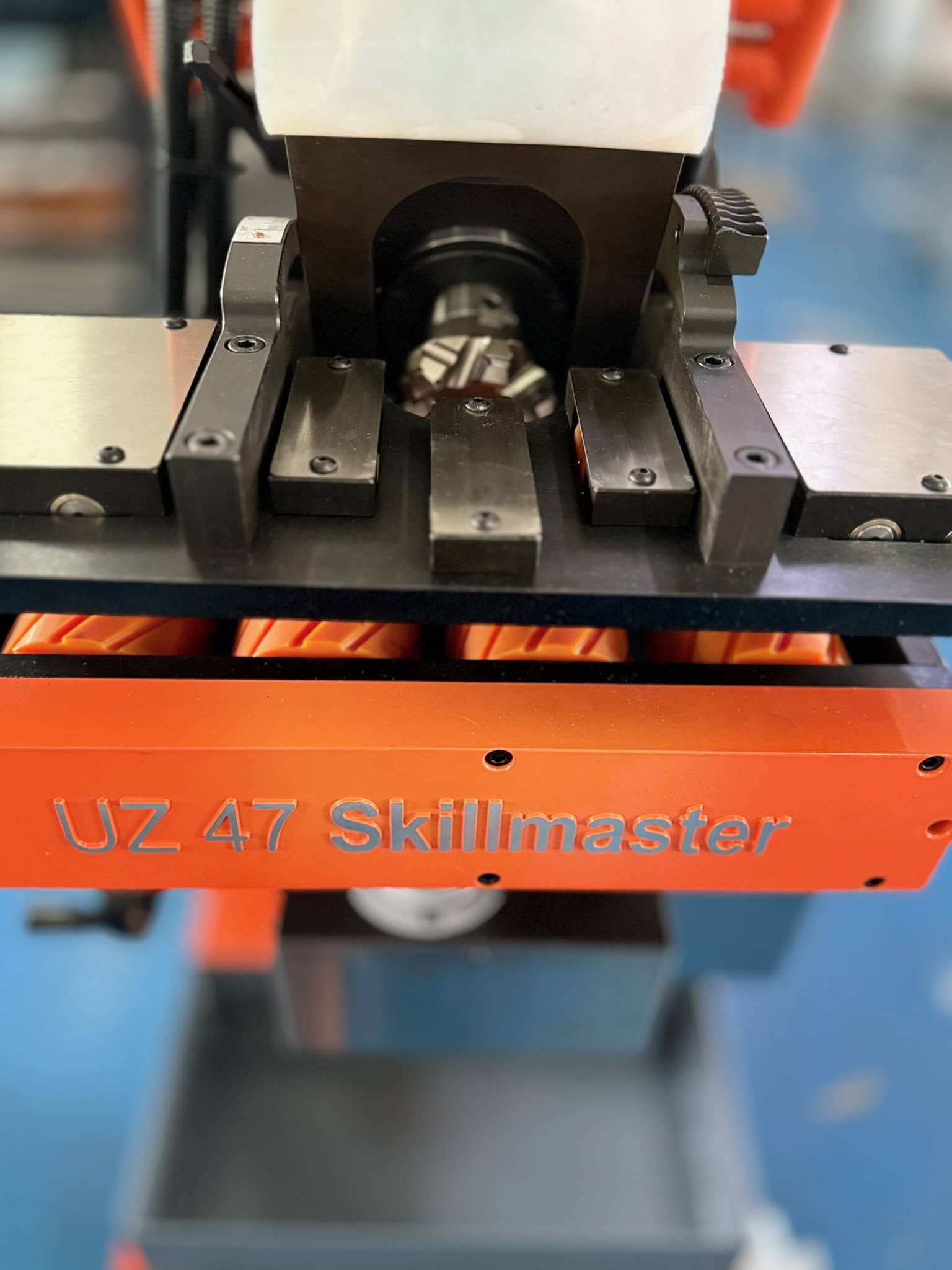

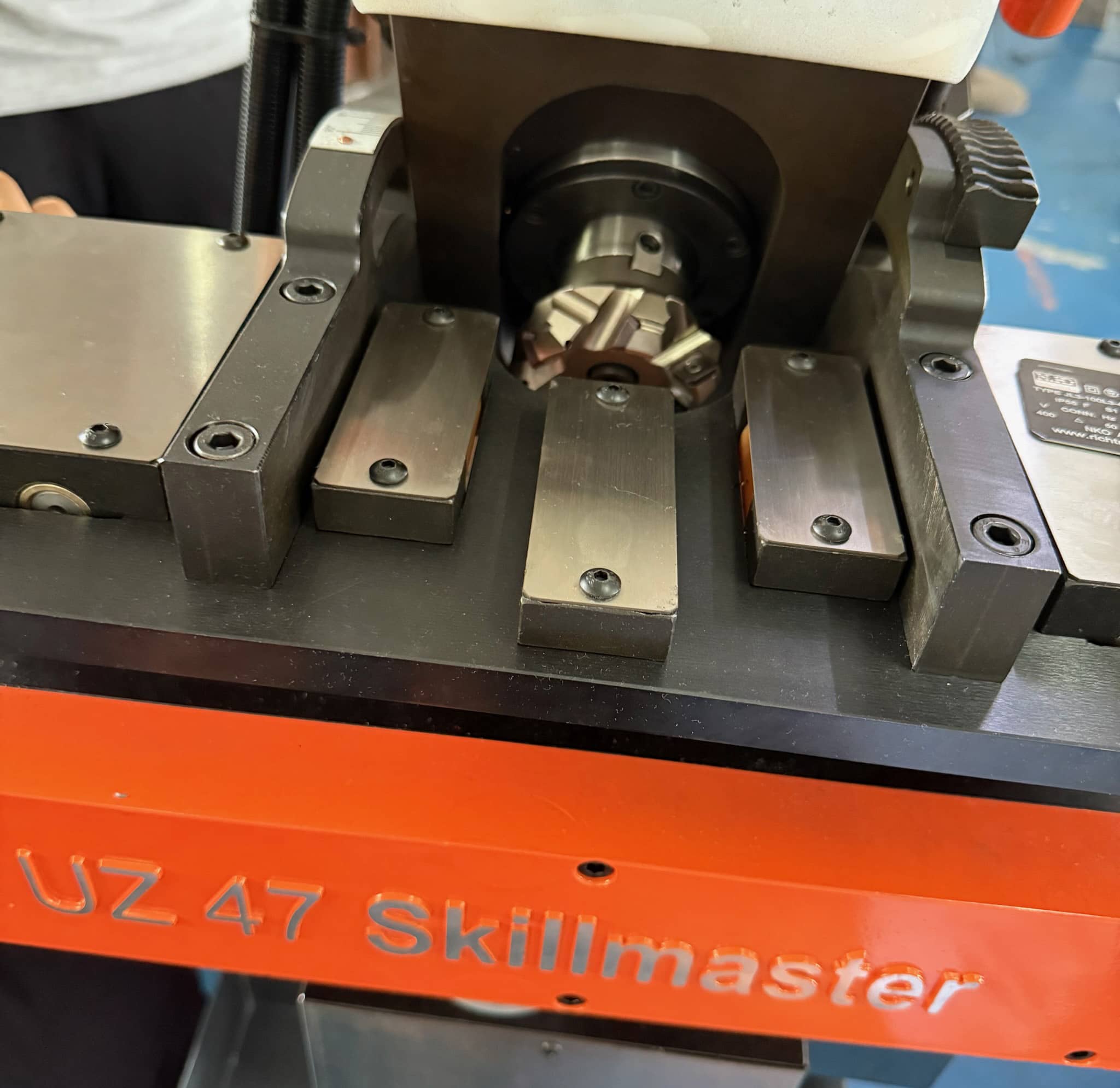

• Automatic workpiece clamping system ensures consistent and secure operation
• Infinitely adjustable tool speed and feed rate for maximum control and surface quality

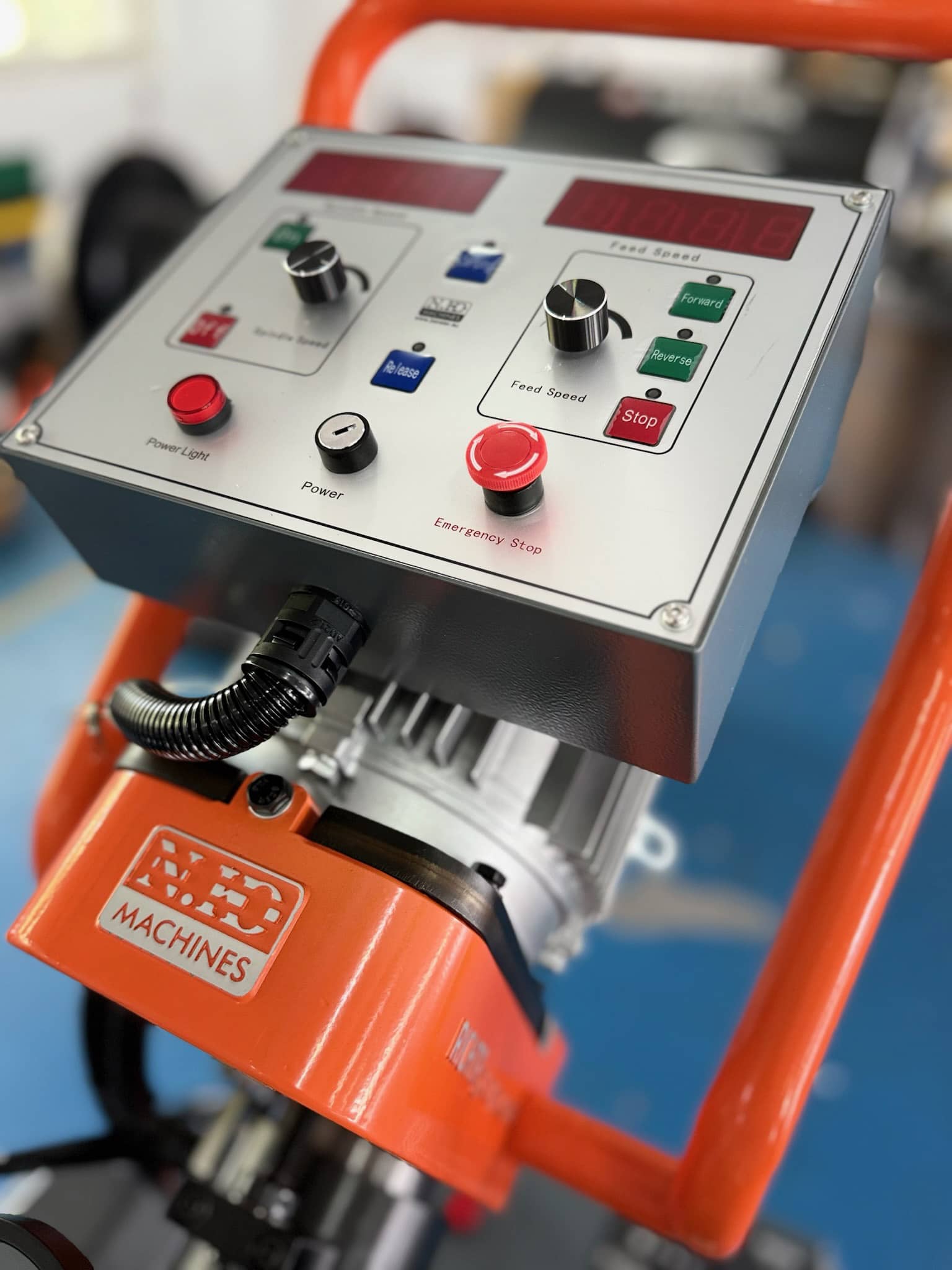

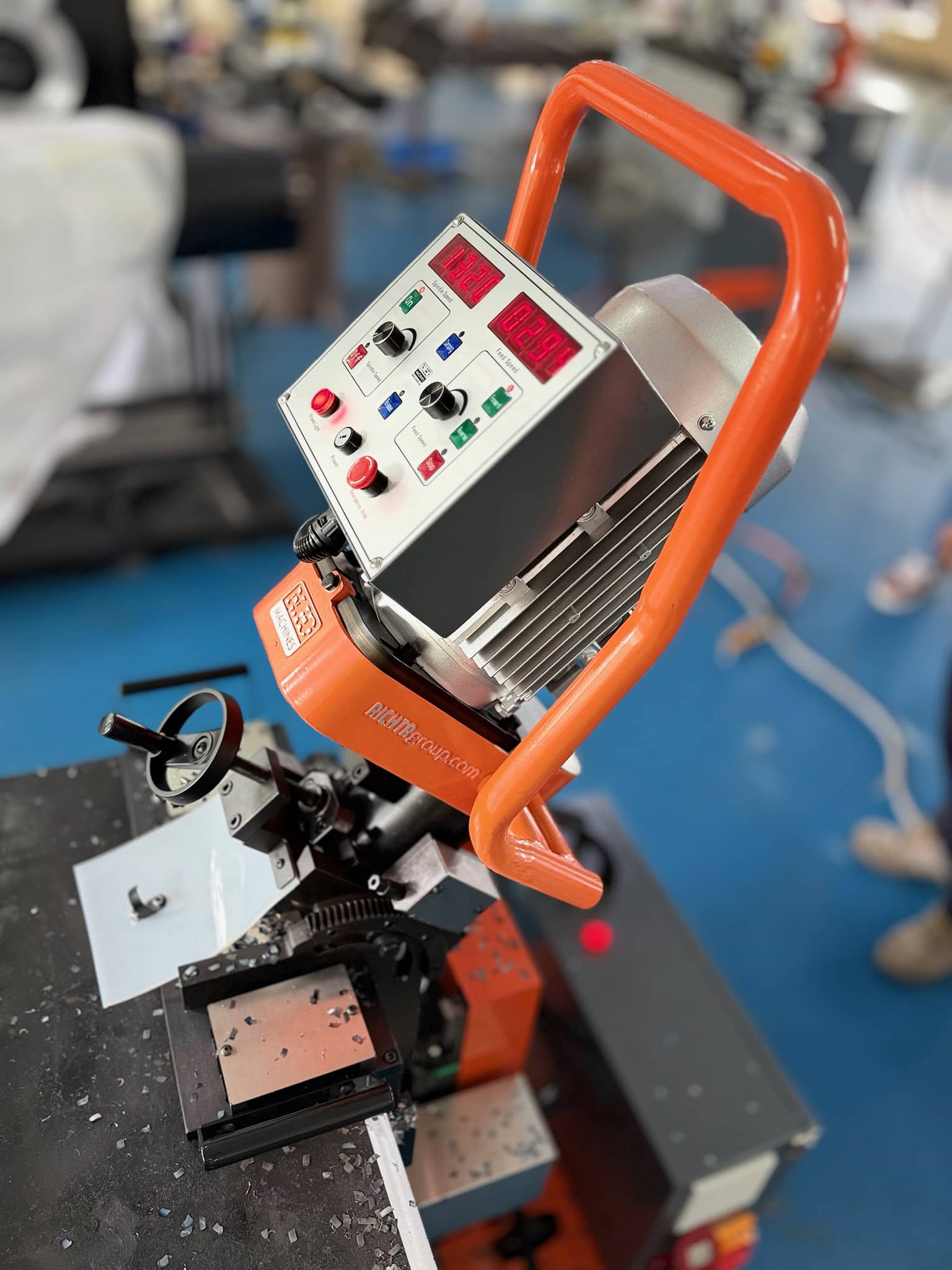

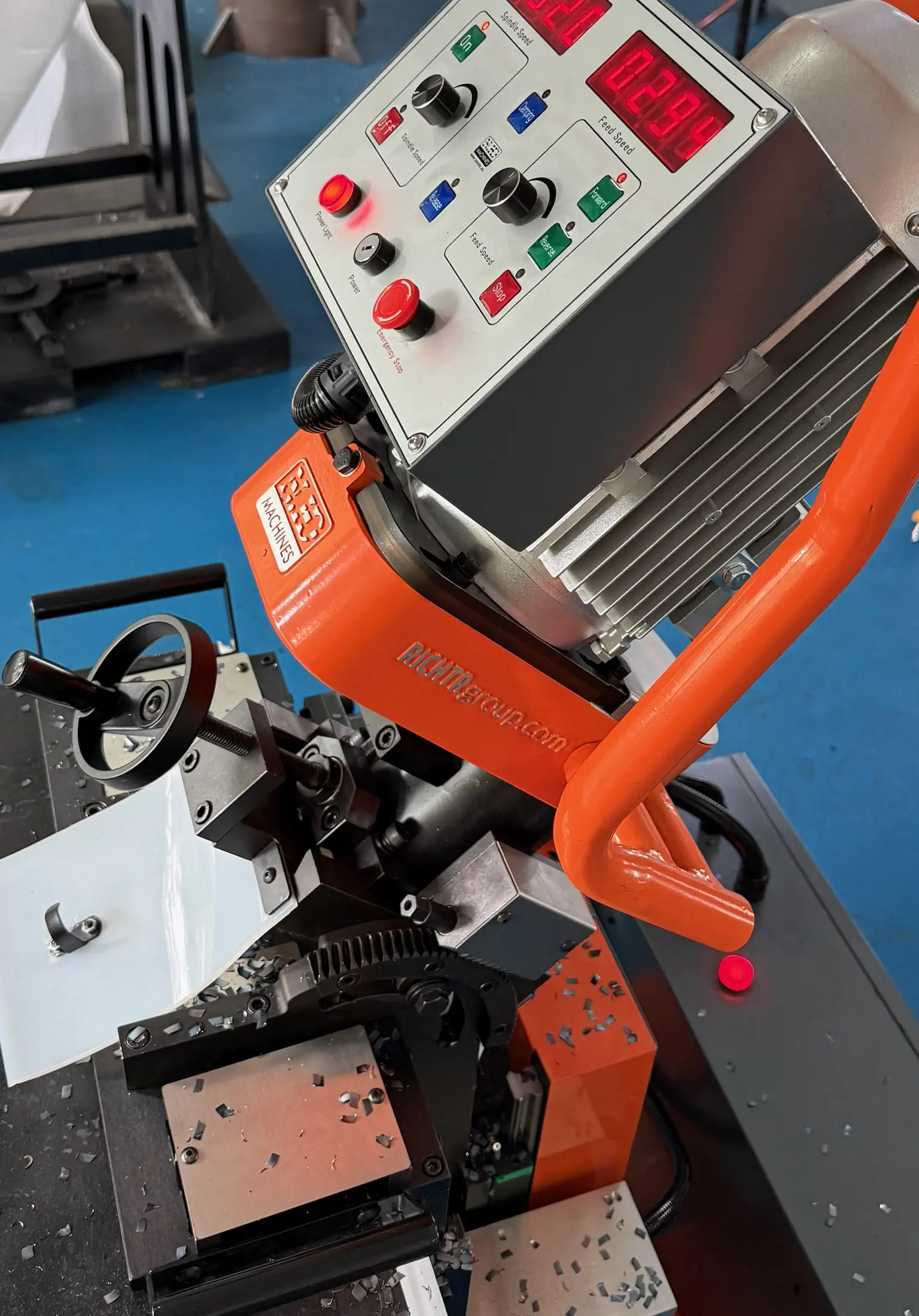

• Dual digital displays provide real-time monitoring of cutting and feed parameters

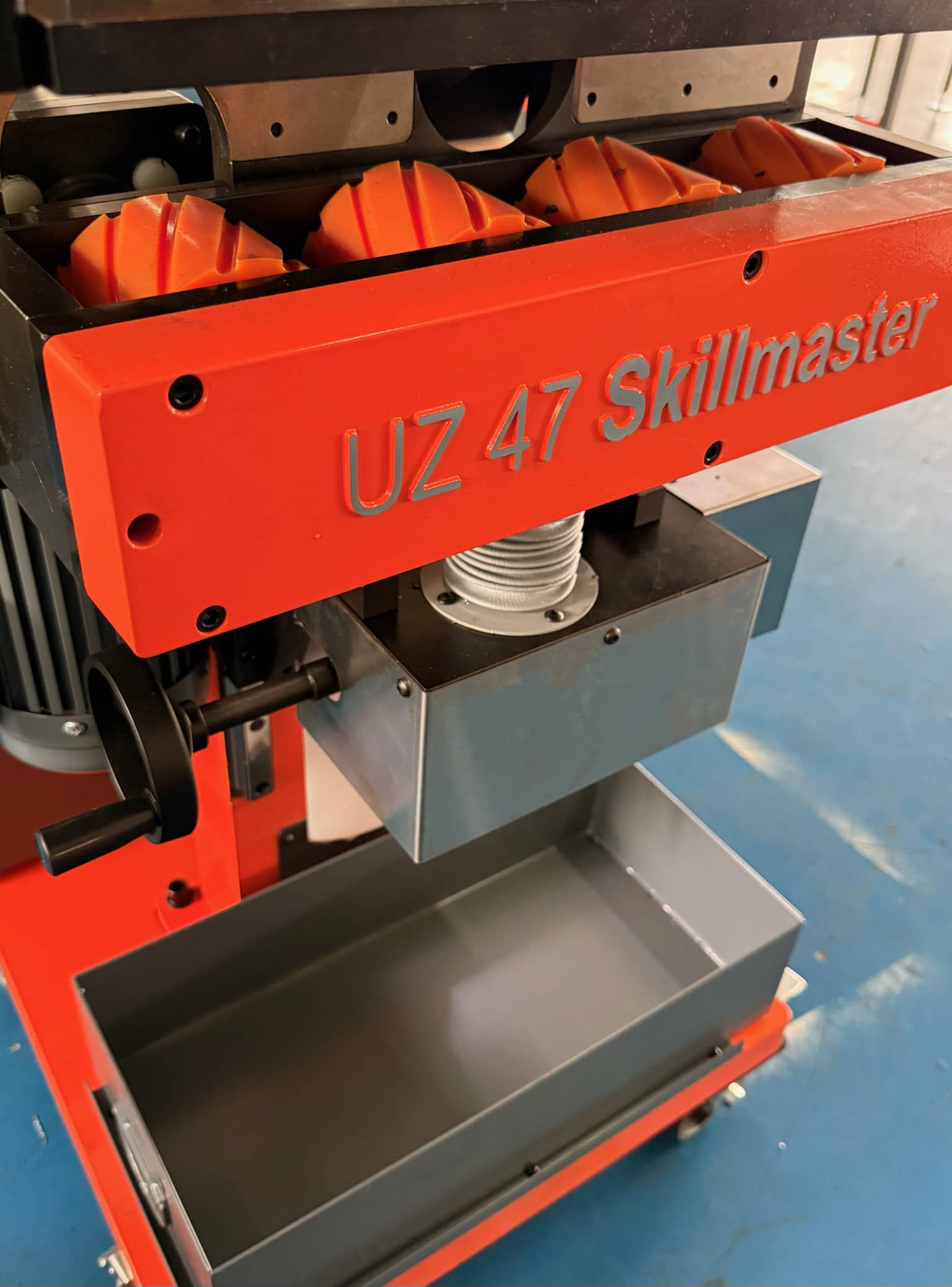

• Height-adjustable machining head for easy adaptation to various workpiece positions
• Three-axis tool adjustment with unique cross-feed function for superior precision and versatility

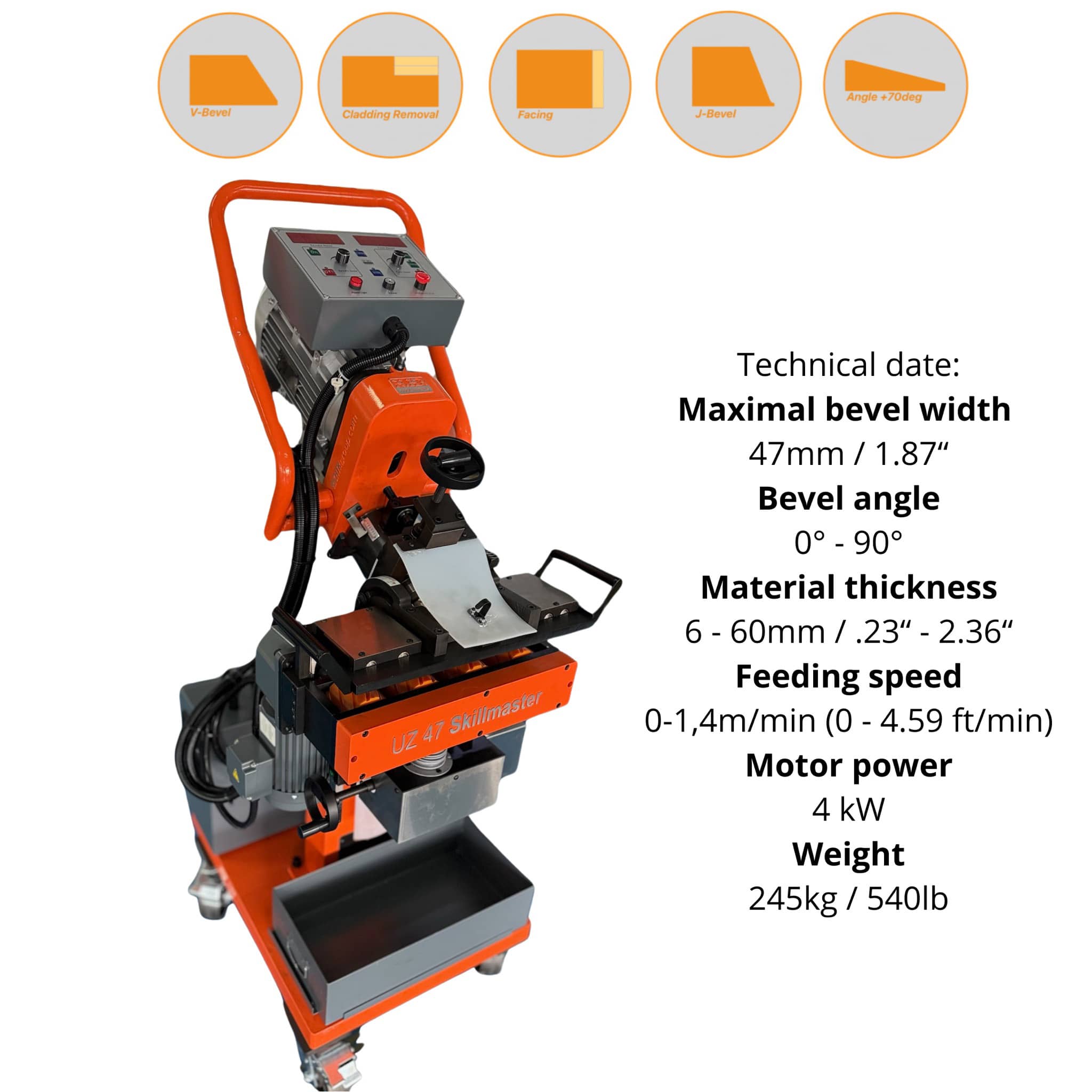

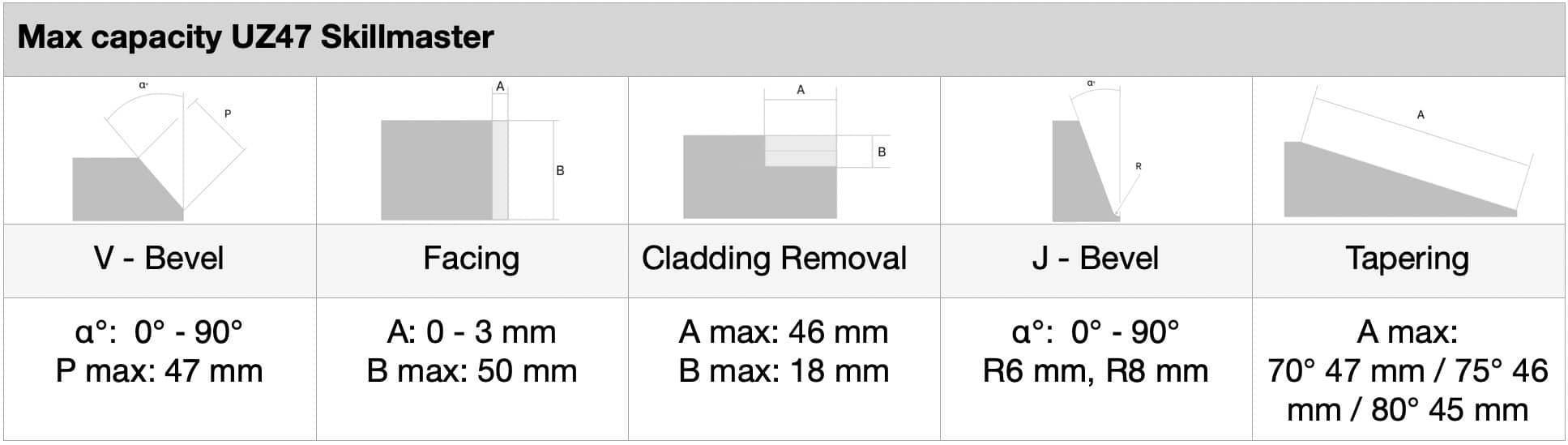

Technical data:

• Max. bevel width: 1.87" / 47 mm
• Bevel angle: 0° - 90°
• Material thickness: 0.23" - 2.36" / 6 - 60 mm
• Feed speed: 0 - 4.59 ft/min (0 - 1.4 m/min)
• Motor power: 4 kW
• Voltage: 400V / 50Hz (220V / 60Hz, 480V / 60Hz)
• Weight: 540 lbs / 245 kg
