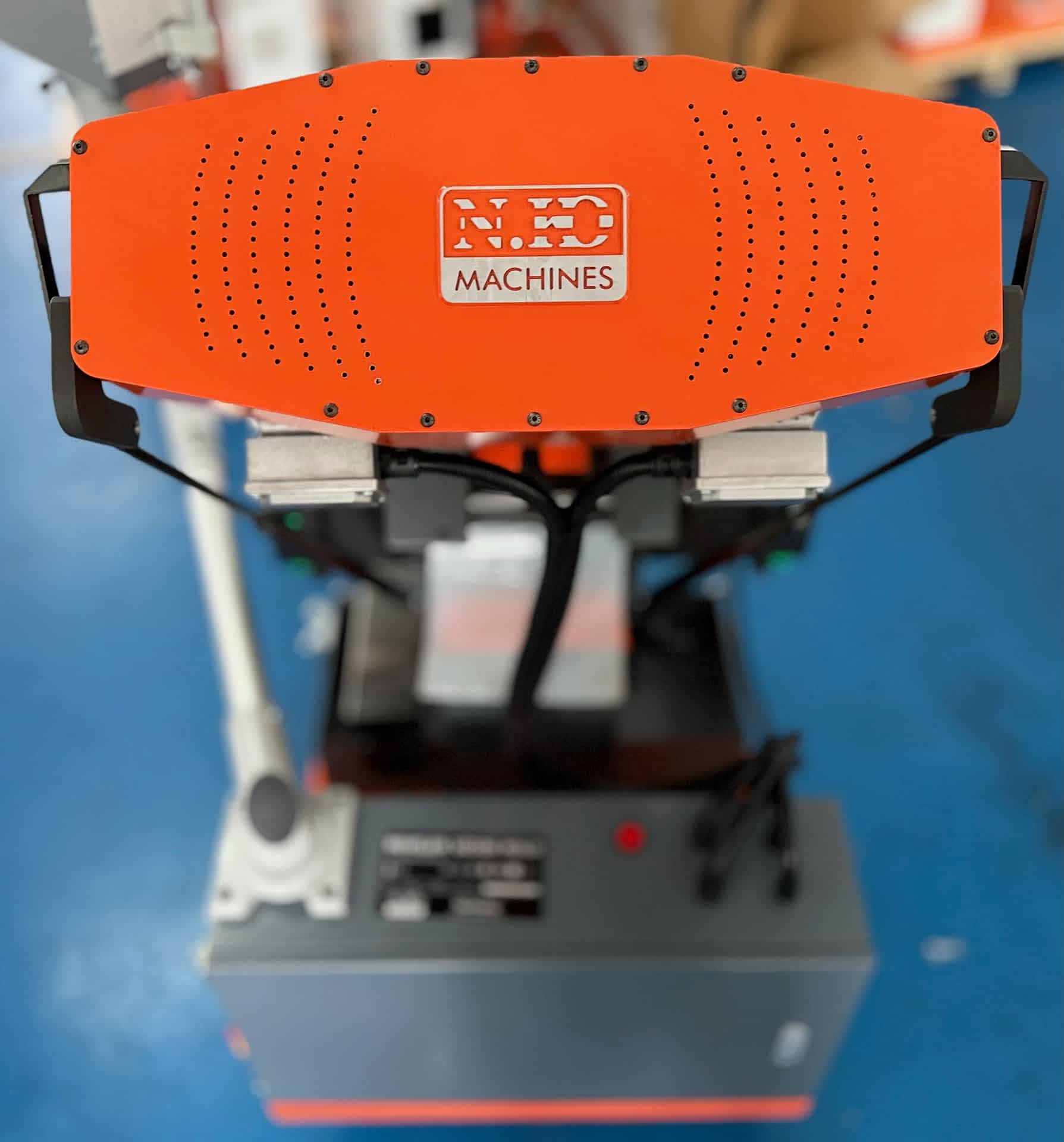

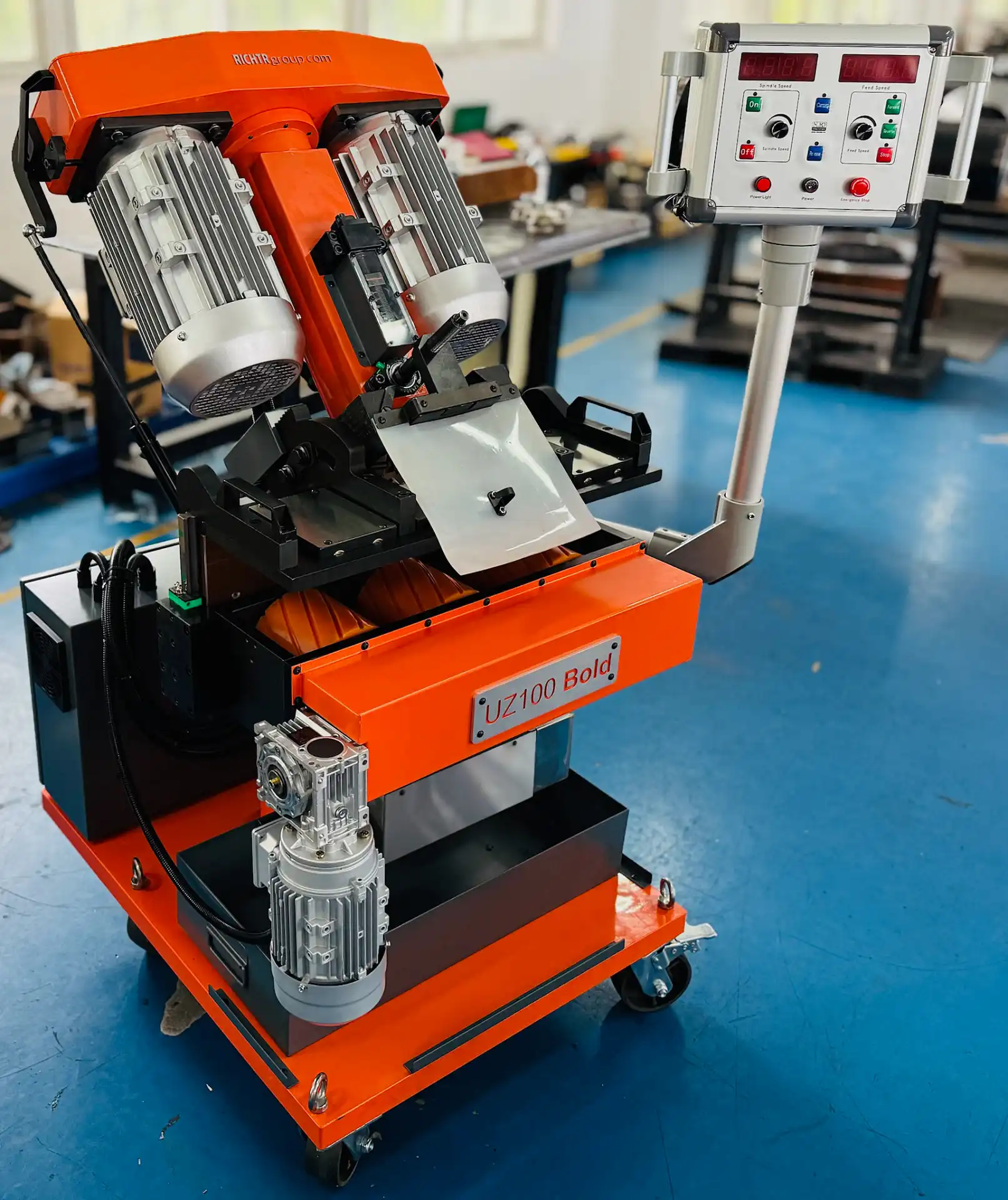

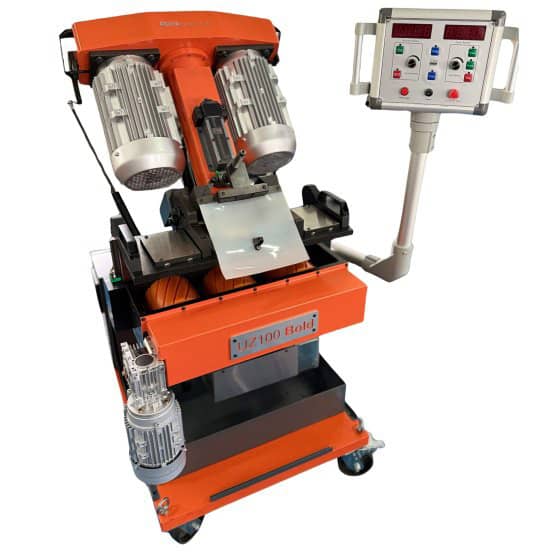

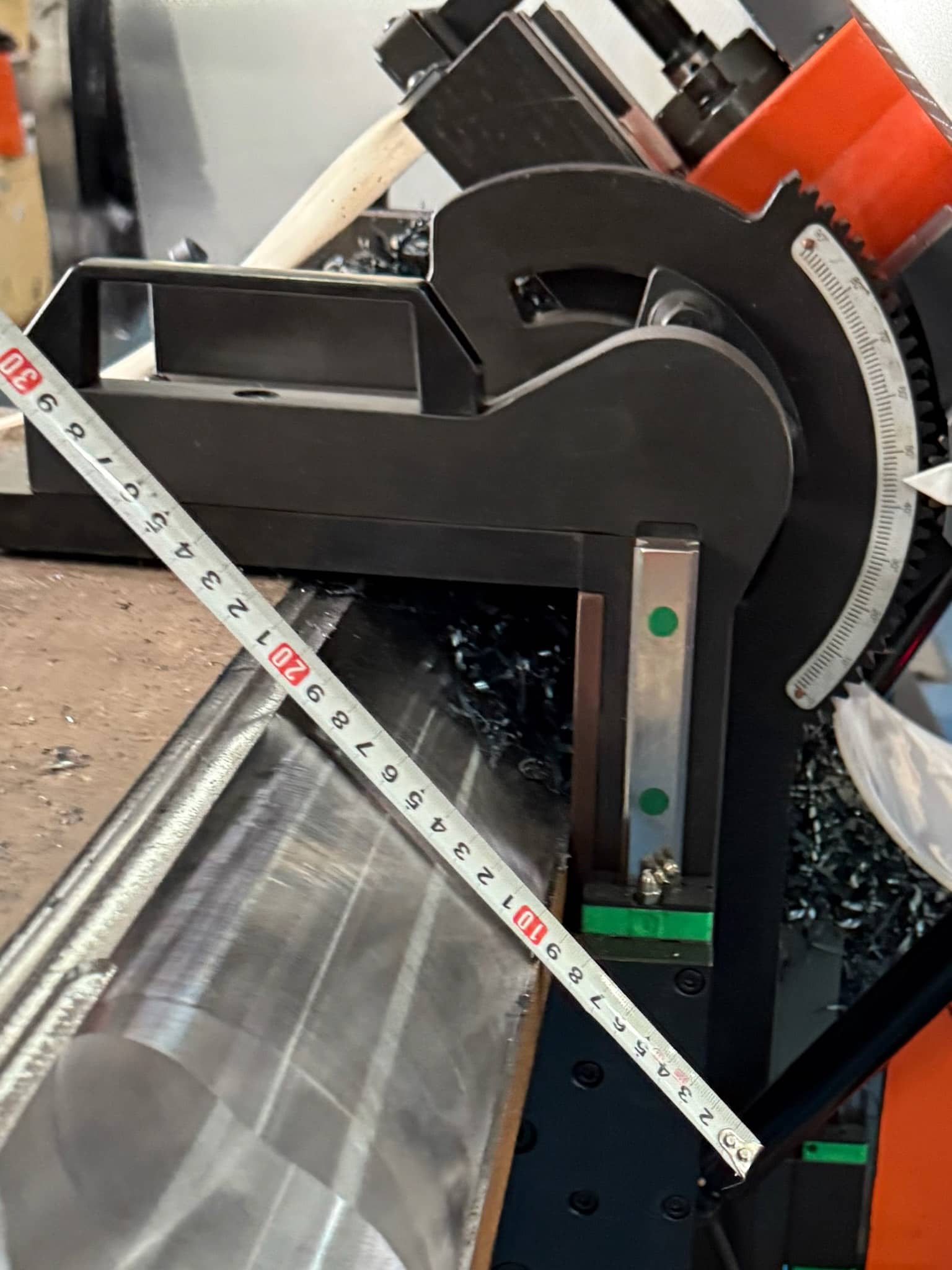

UZ100 BOLD

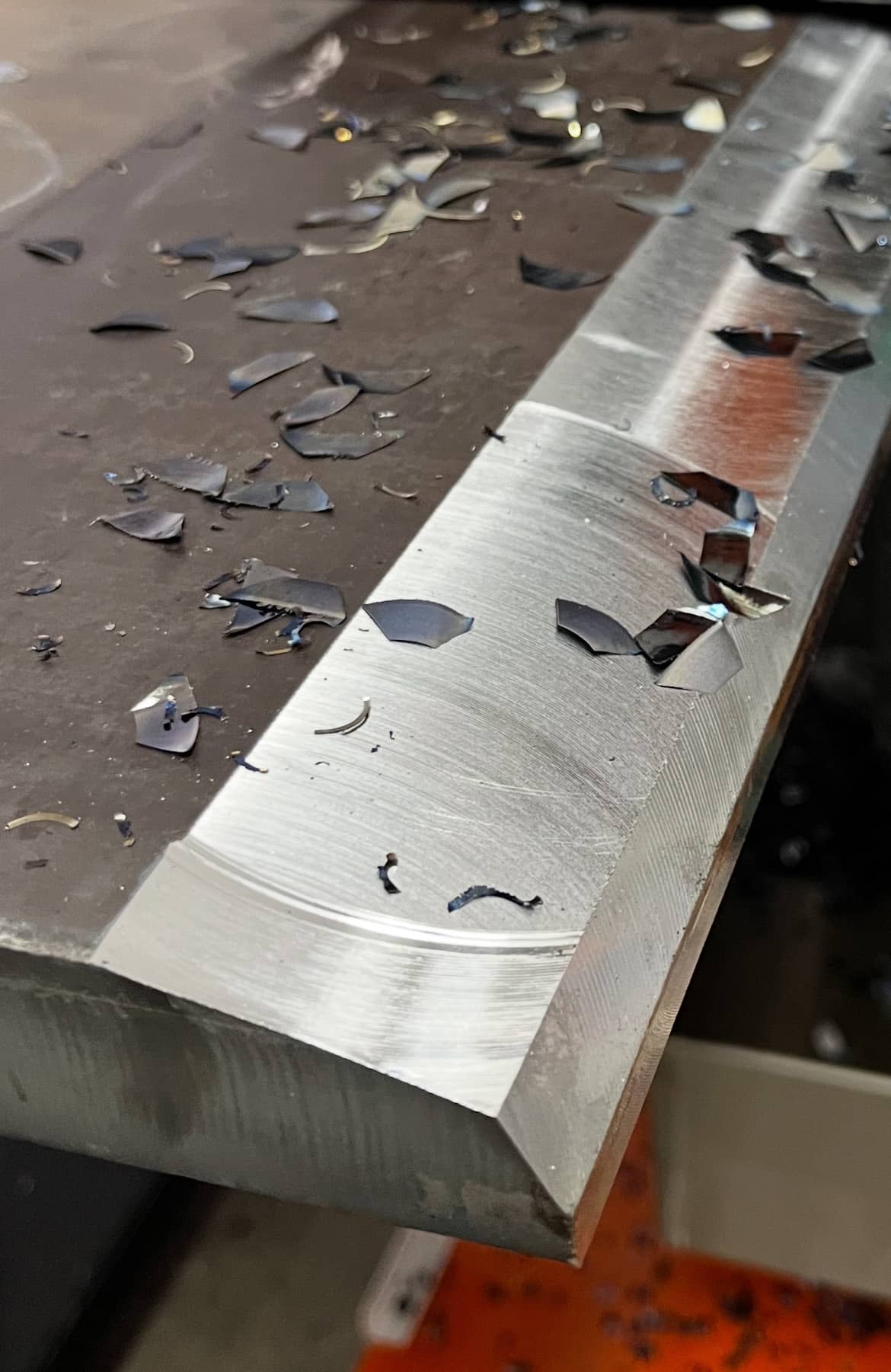

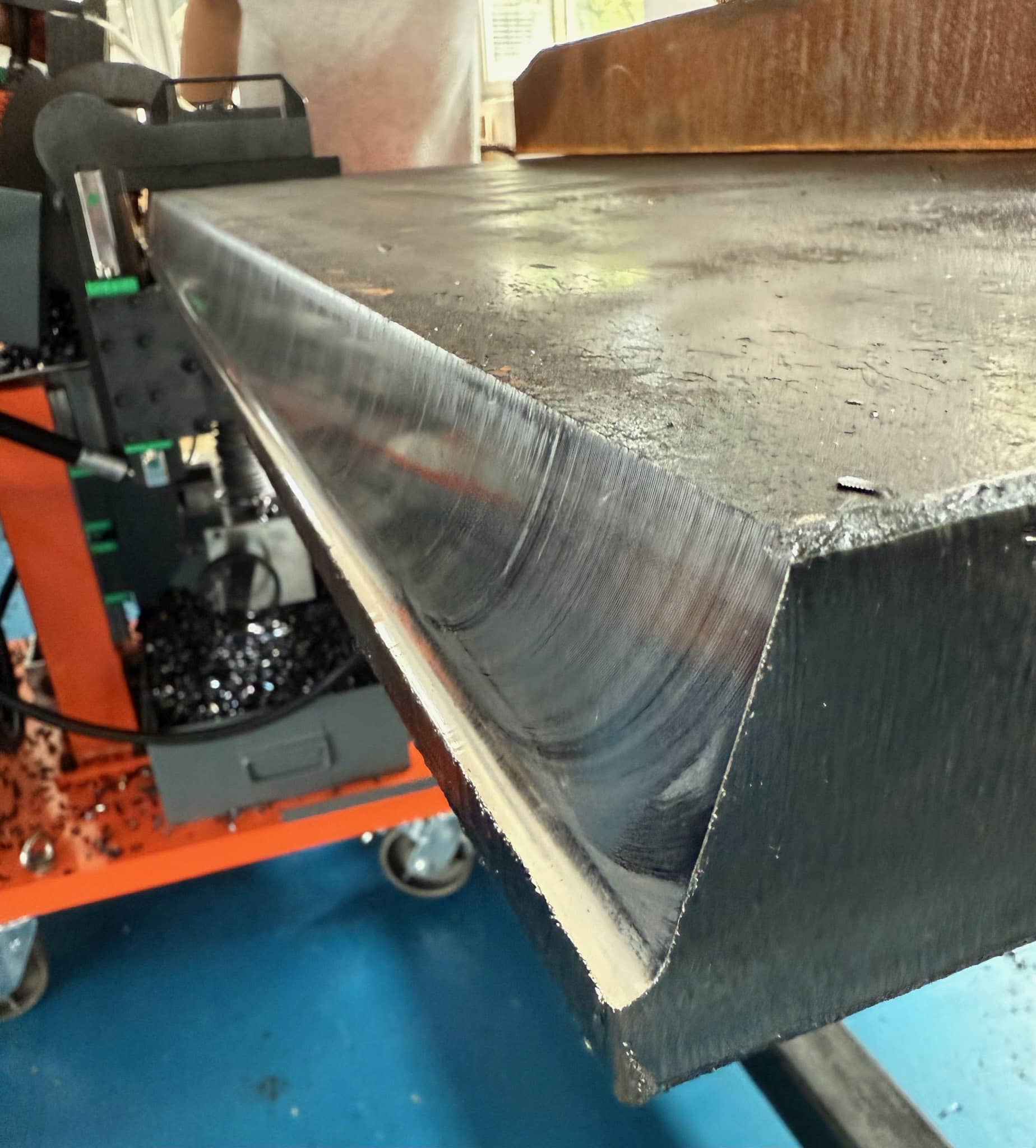

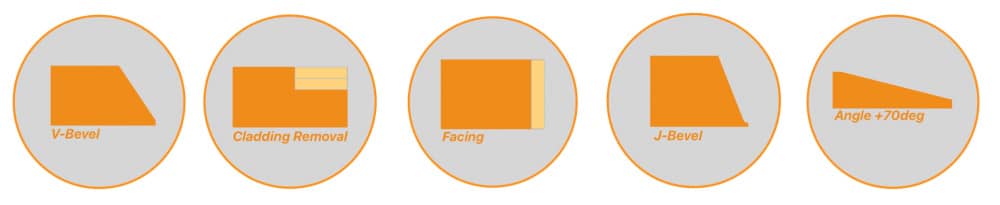

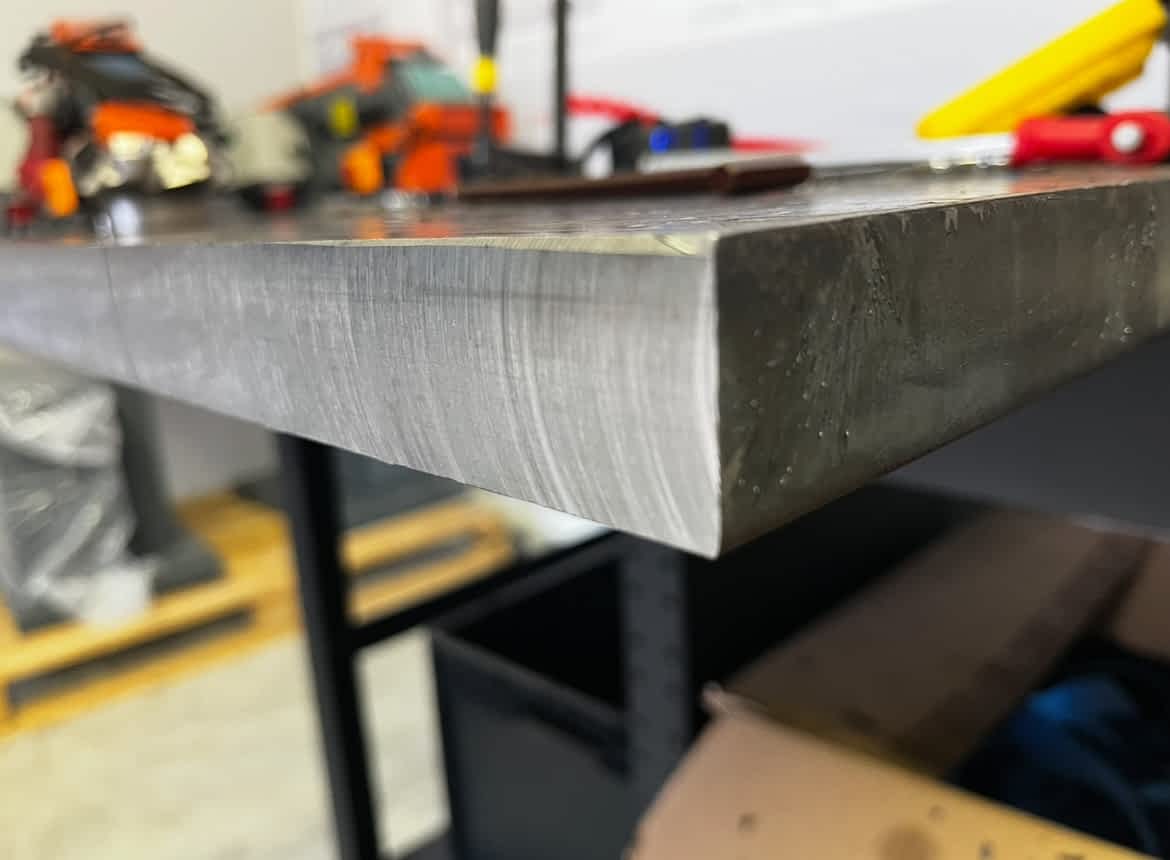

Universal multi-purpose bevelling: Automatic feed system for precise V-bevel, J-bebel, and variable angle bevels, cladding removal, facing, and chamfers up to +70°

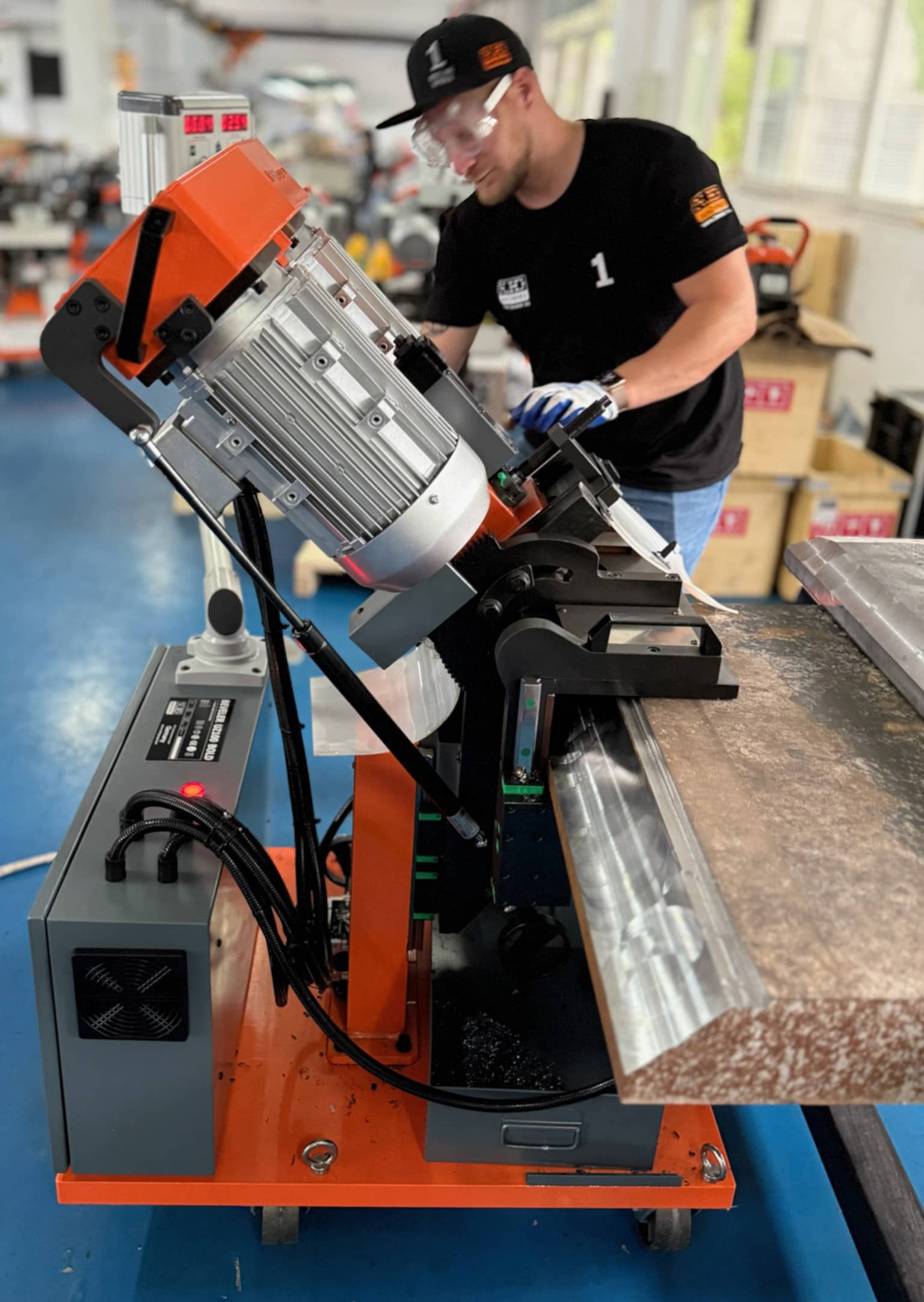

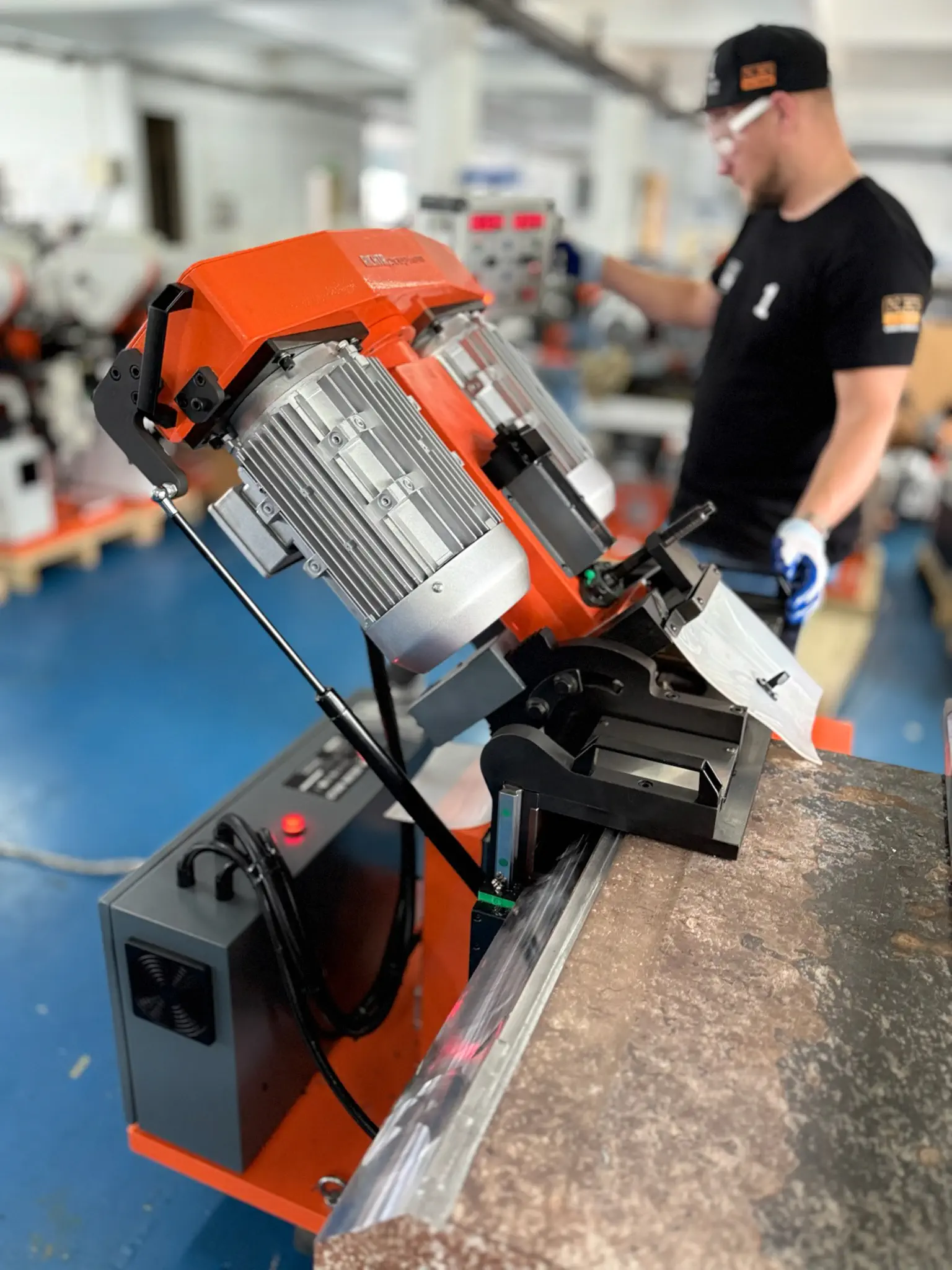

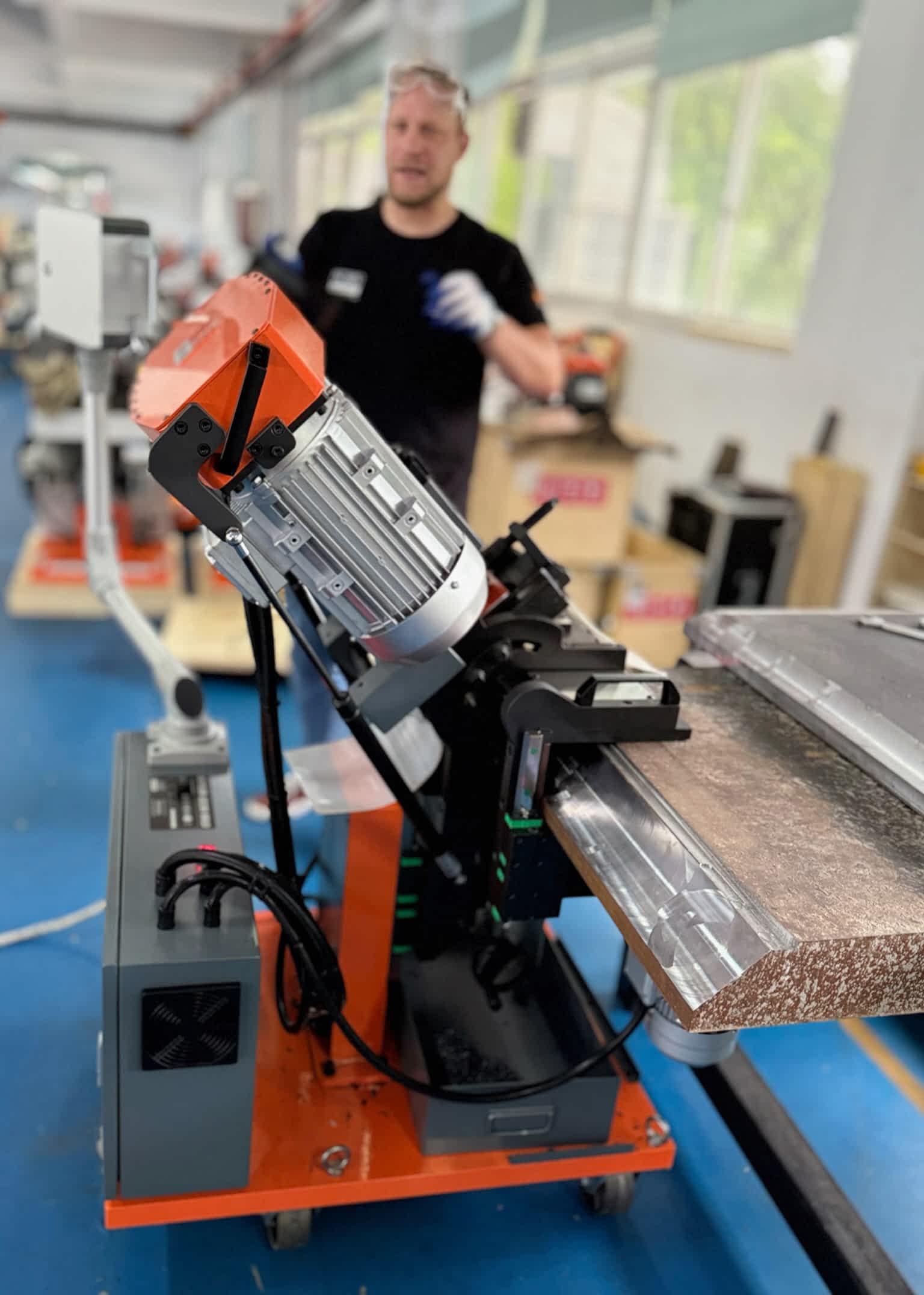

- Advanced stationary bevelling machine designed for heavy-duty applications on structural and high-strength steels
- Ideal for machining stainless steel, Hardox, Domex, and other tough-to-machine materials

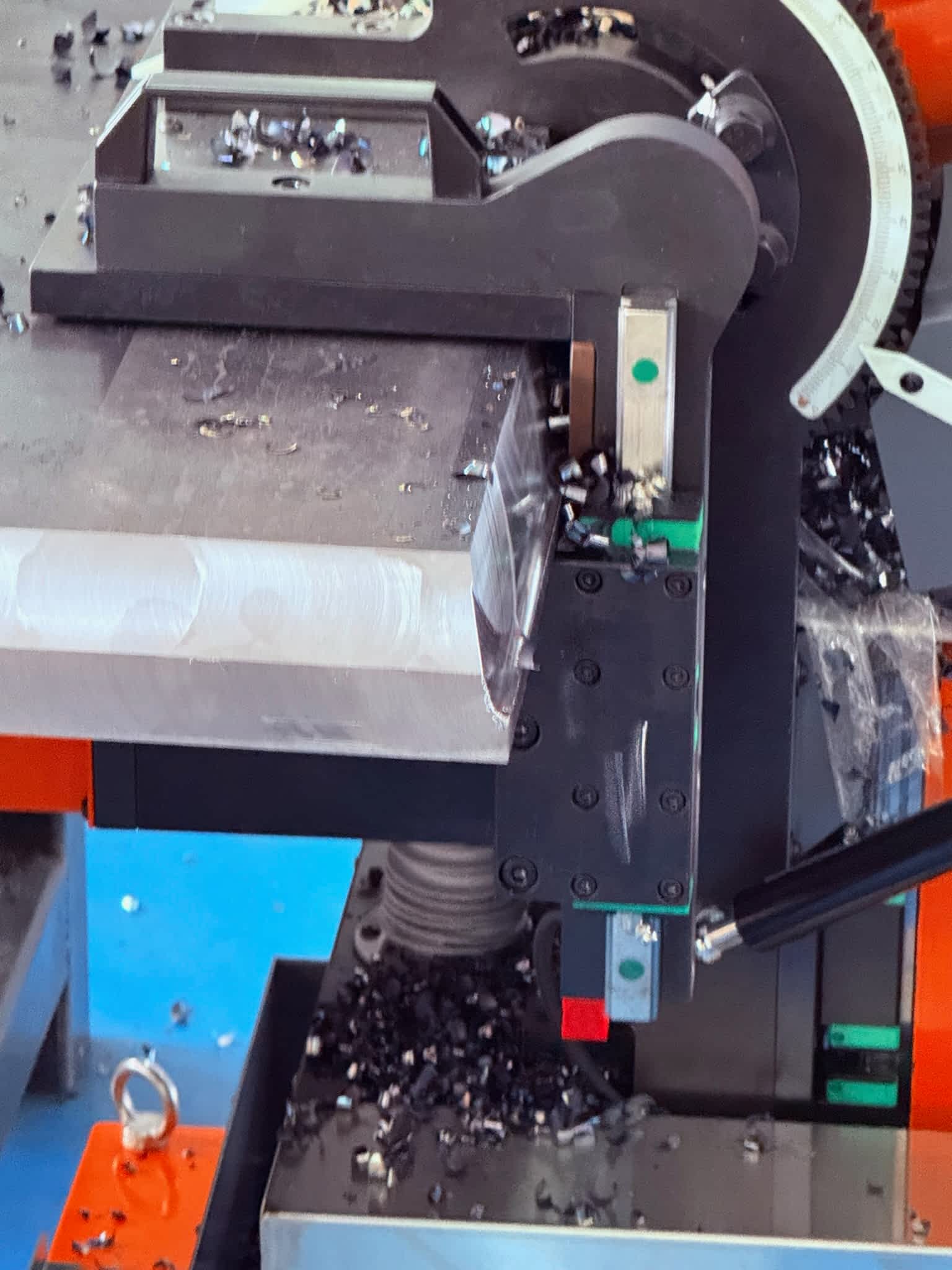

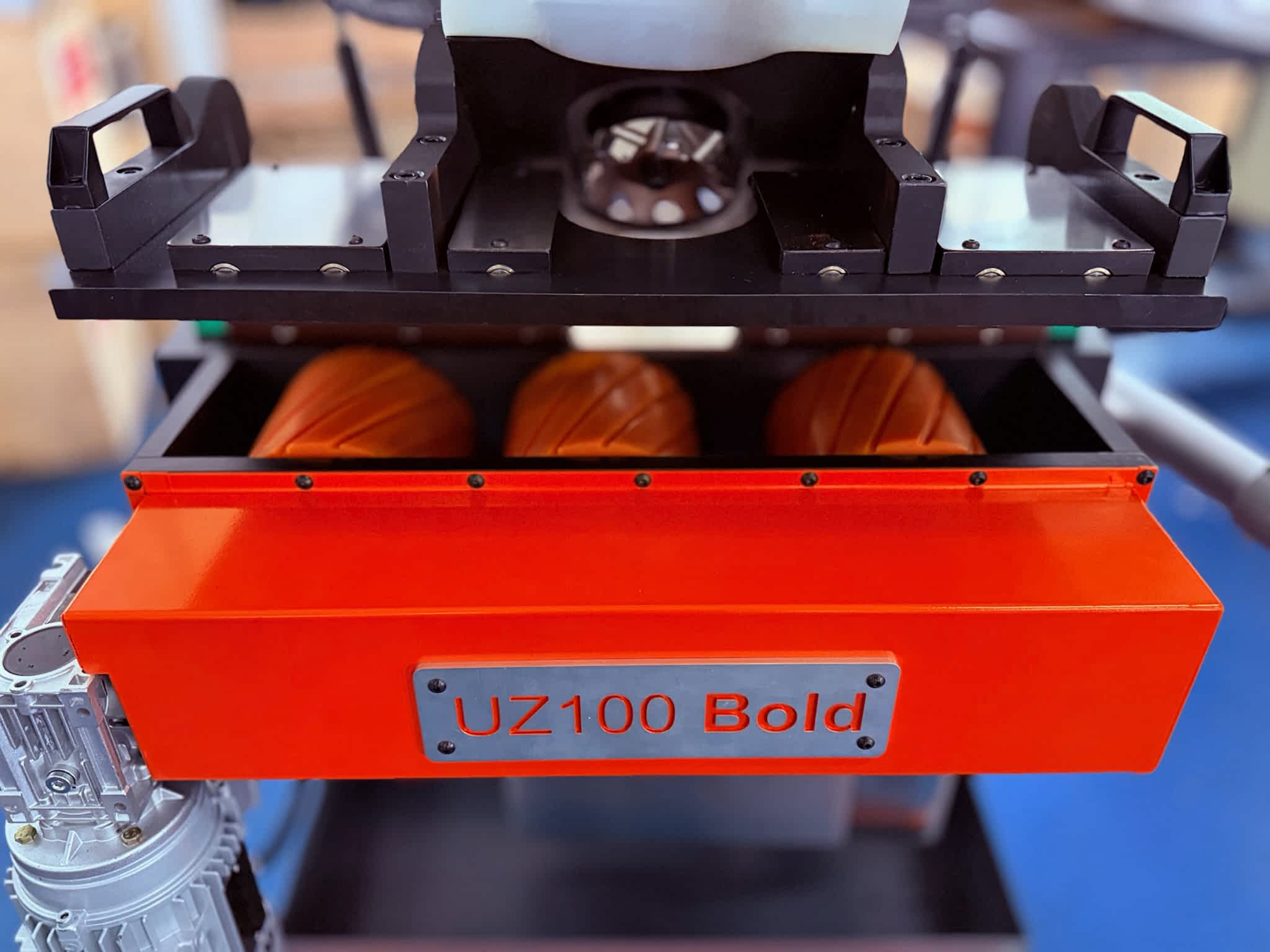

- Automatic workpiece clamping system ensures stable and efficient operation
- Continuously adjustable tool speed and feed rate for optimized cutting performance

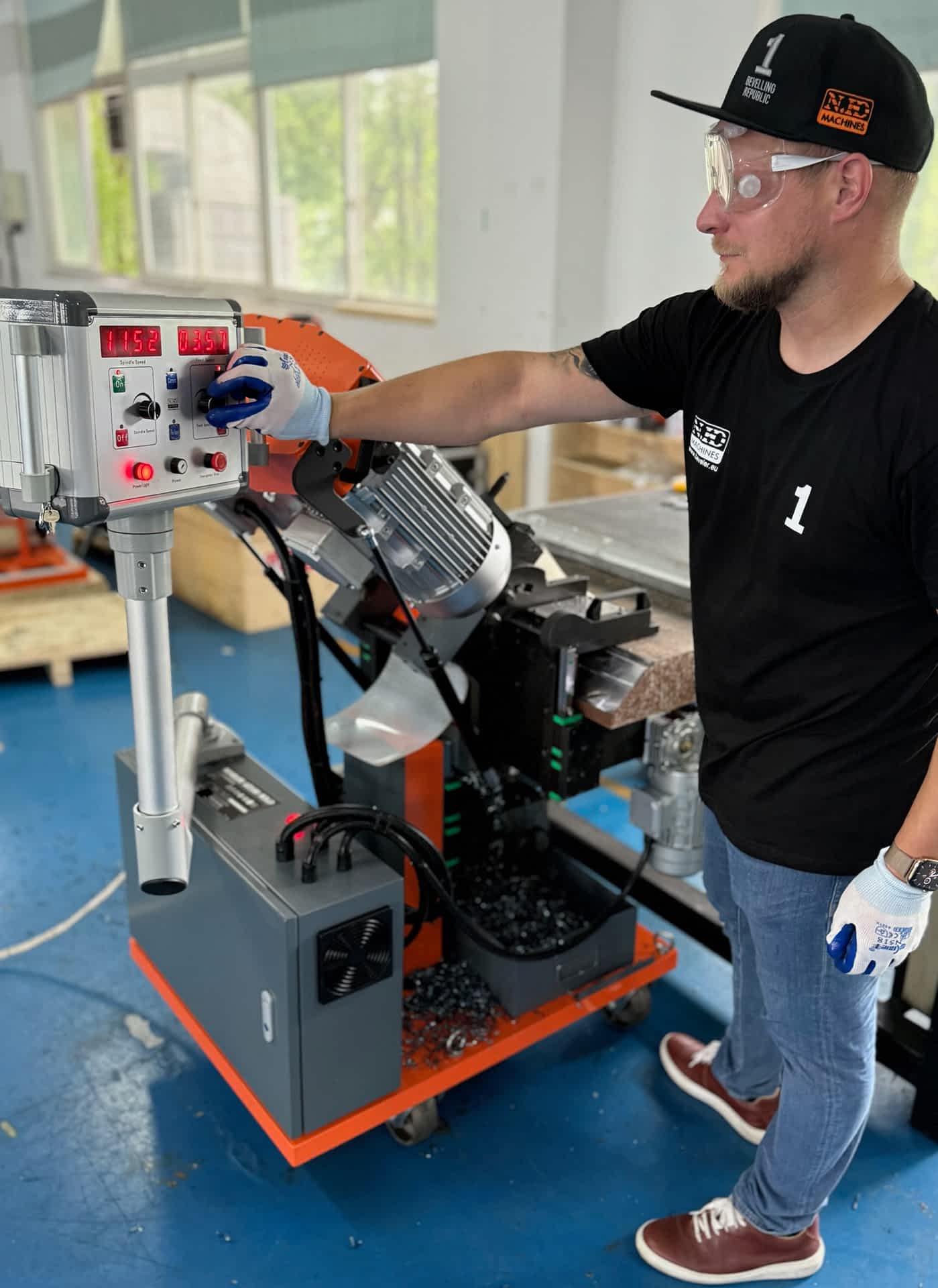

- Equipped with dual digital displays showing live cutting and feed parameters
- Height-adjustable machining head adapts to various workpiece positions
- Three-axis tool adjustment system with a unique cross-feed mechanism for precision bevelling

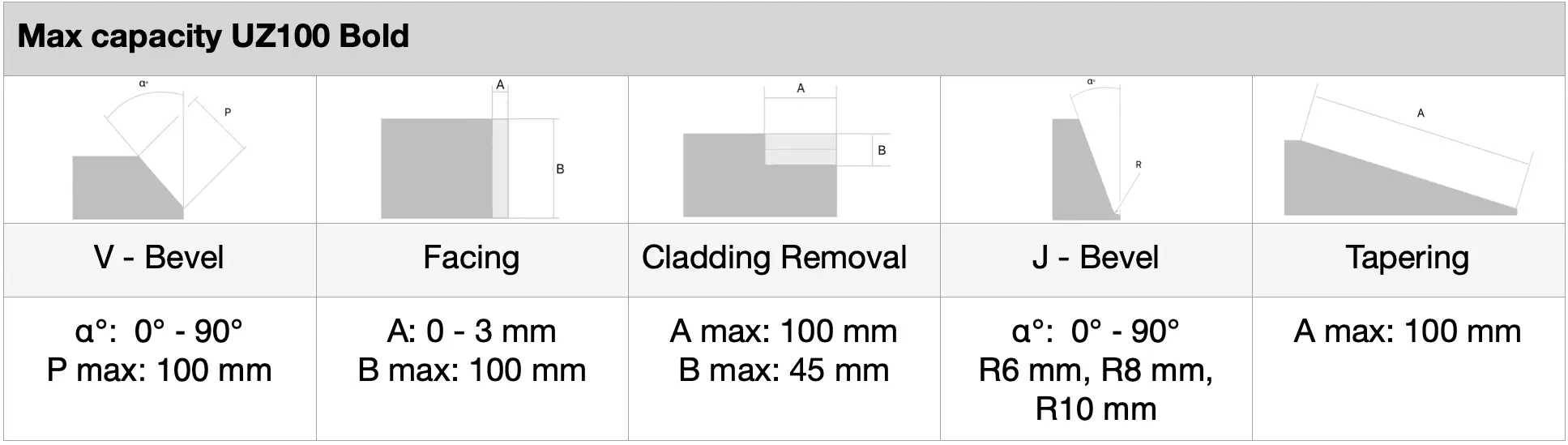

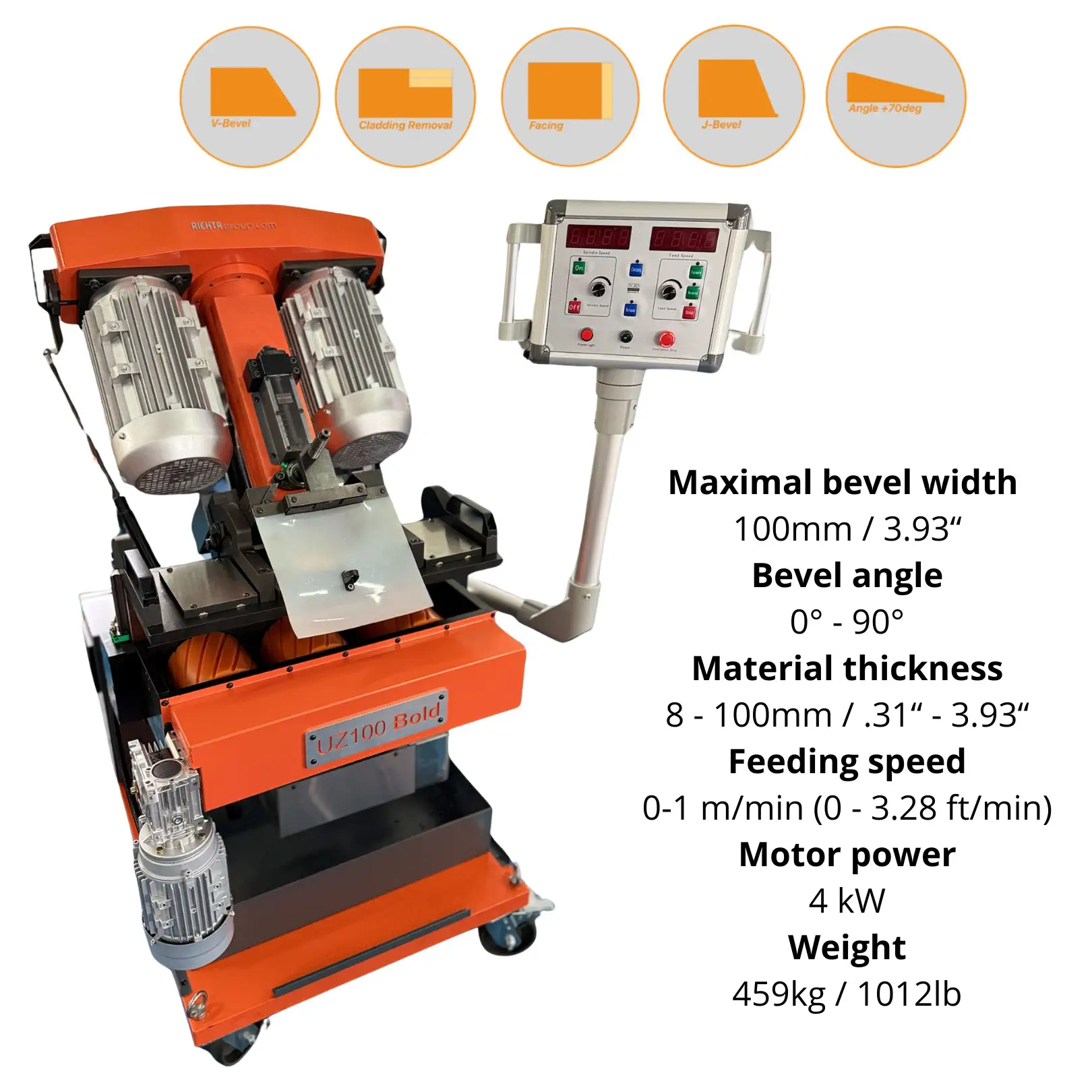

Technical data:
- Max. bevel width: 3.93" / 100 mm
- Bevel angle: 0° - 90°
- Material thickness: 0.31" - 3.93" / 8 - 100 mm
- Feed speed: 0 - 3.28 ft/min (0 - 1 m/min)
- Motor power: 4 kW
- Voltage: 400V / 50Hz (220V / 60Hz, 480V / 60Hz)
- Weight: 1012 lbs / 459 kg
× ![]()
Product list & skew
Bevelling and Milling Head Components
| Machine name: | 400V, 50Hz | 480V, 60Hz | 220V, 60Hz |
|---|---|---|---|
| UZ100 BOLD | 1000 | 1002 | 1001 |
| Accessories | Article Number |
|---|---|
| Milling head for Bevelling and Facing application | 1005 |
| Square Cutting inserts for bevelling and facing - ECO | 1944 |
| Square Cutting inserts for bevelling and facing - Premium | 1950 |

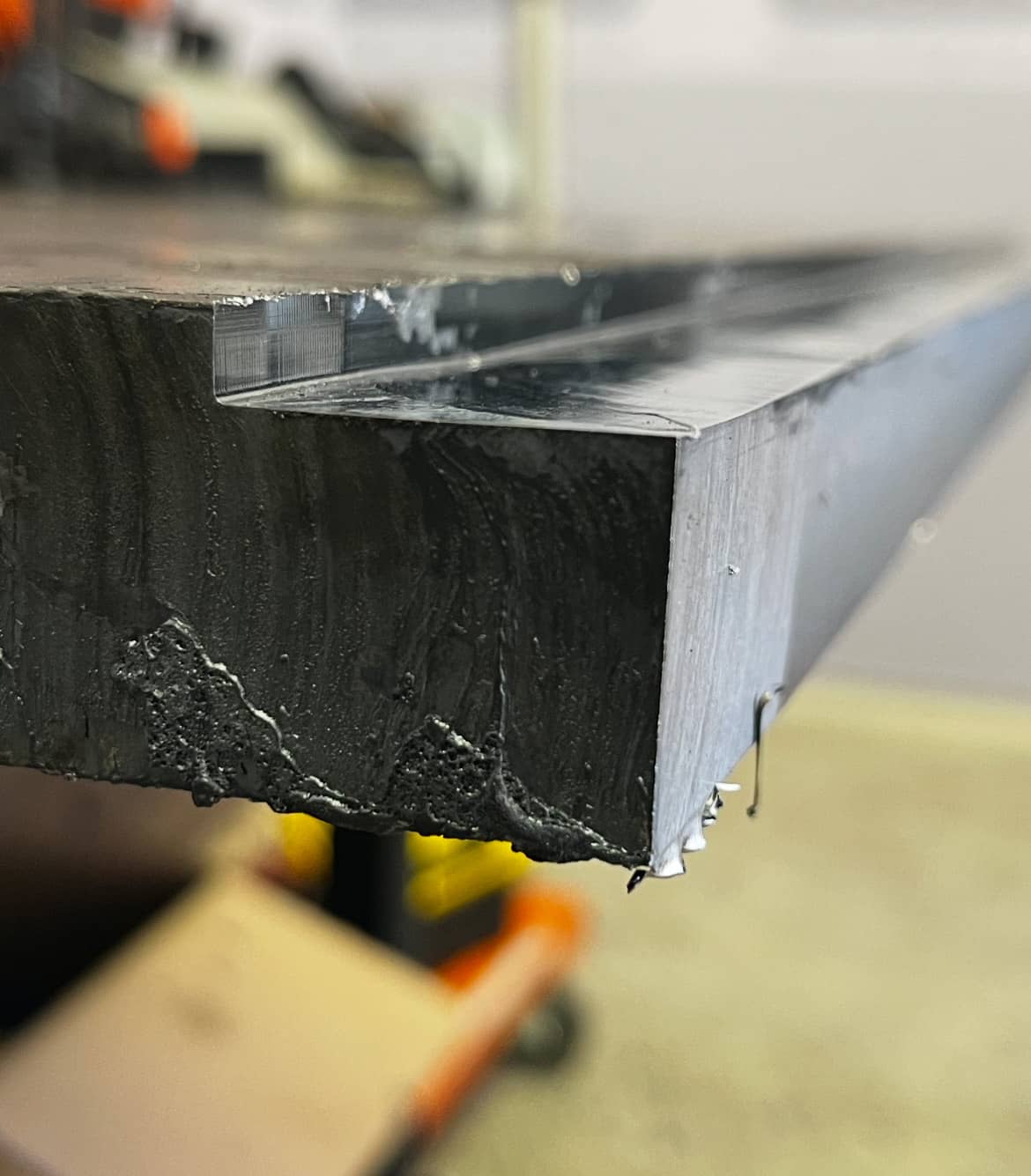

| Milling head for Cladding Removal application | 1006 |
| Rectangular Cutting inserts for Cladding Removal, ECO | 1007 |
| Milling head for J-Bevel application, R6mm | 1008 |
| Round Cutting inserts for J-Bevel, R6mm, ECO | 1009 |
| Milling head for J-Bevel application, R8mm | 1010 |
| Round Cutting inserts for J-Bevel, R8mm, ECO | 1011 |
| Milling head for J-Bevel application, R10mm | 1012 |
| Round Cutting inserts for J-Bevel, R10mm, ECO | 1013 |
| Bevelling Solver | 1900 |
