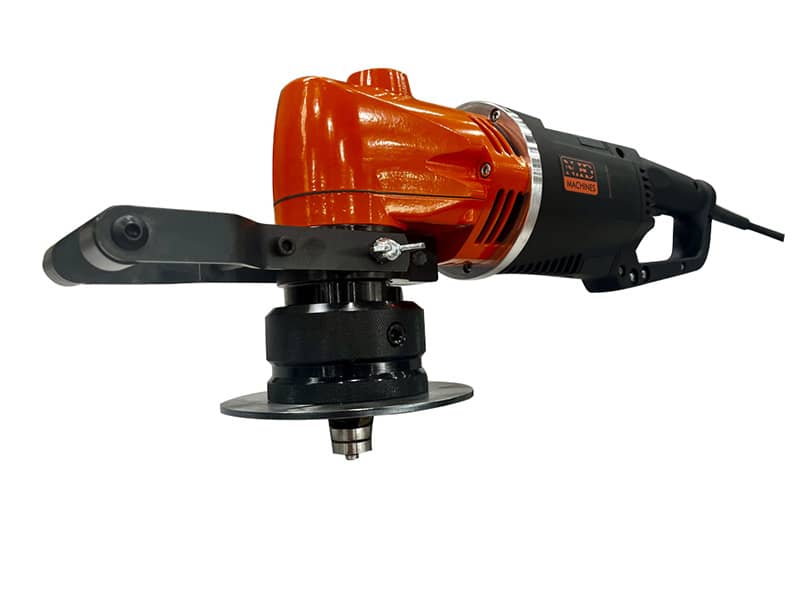

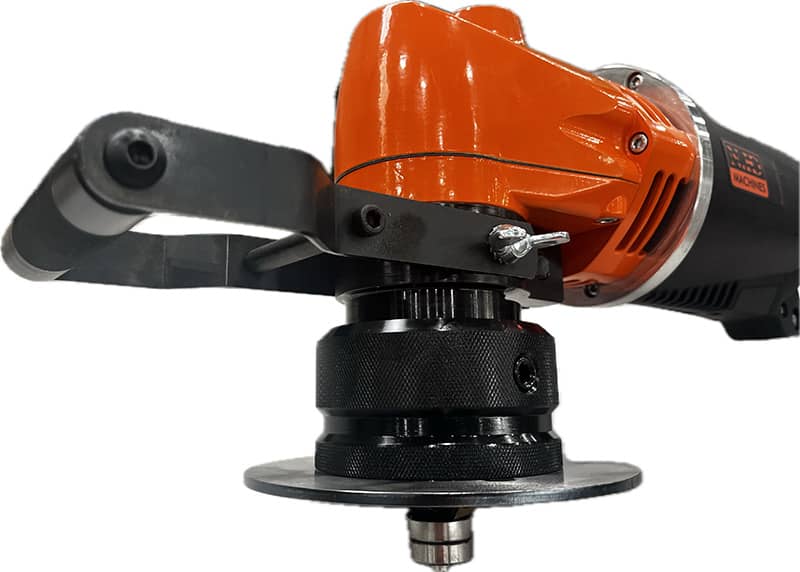

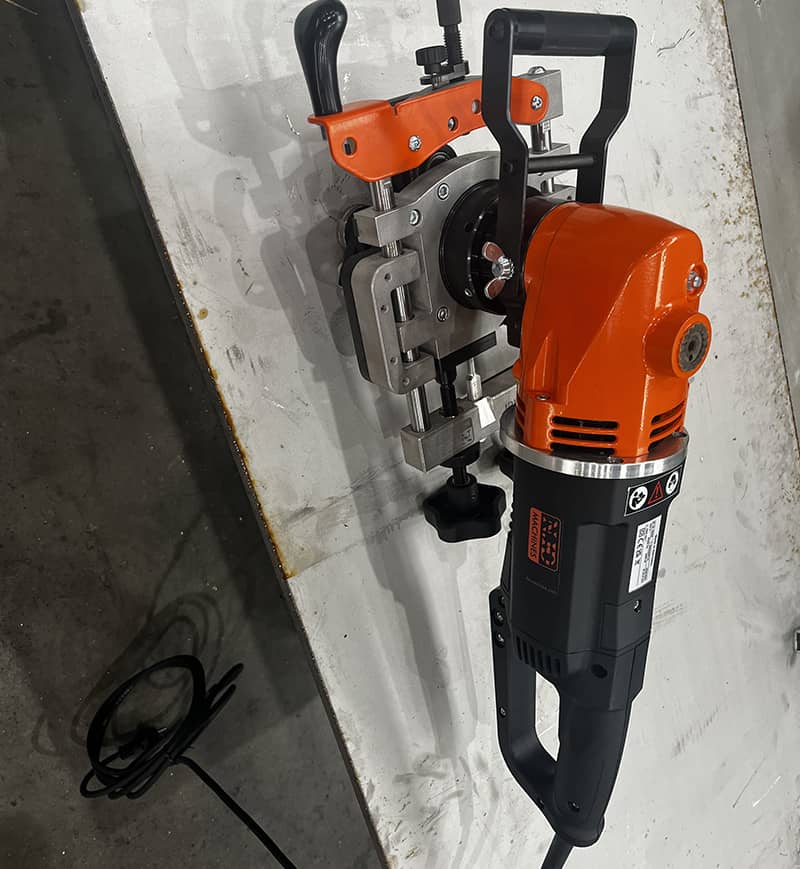

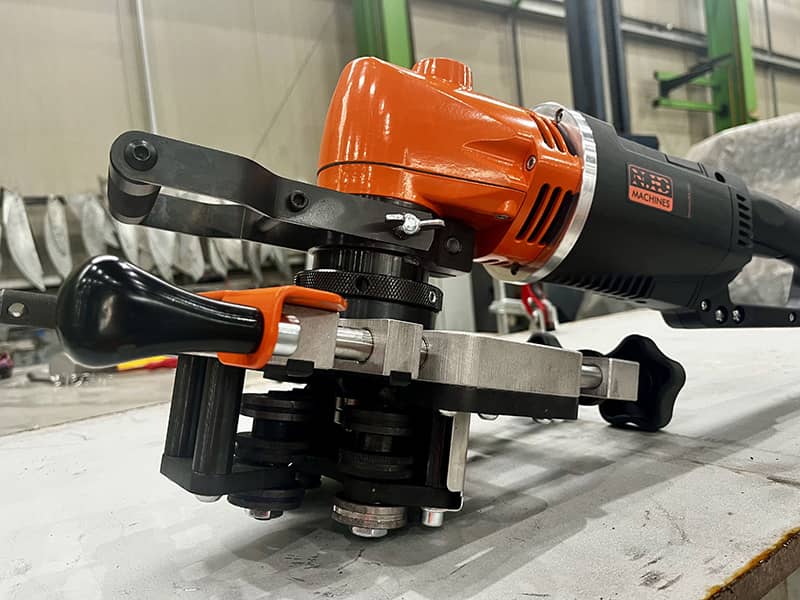

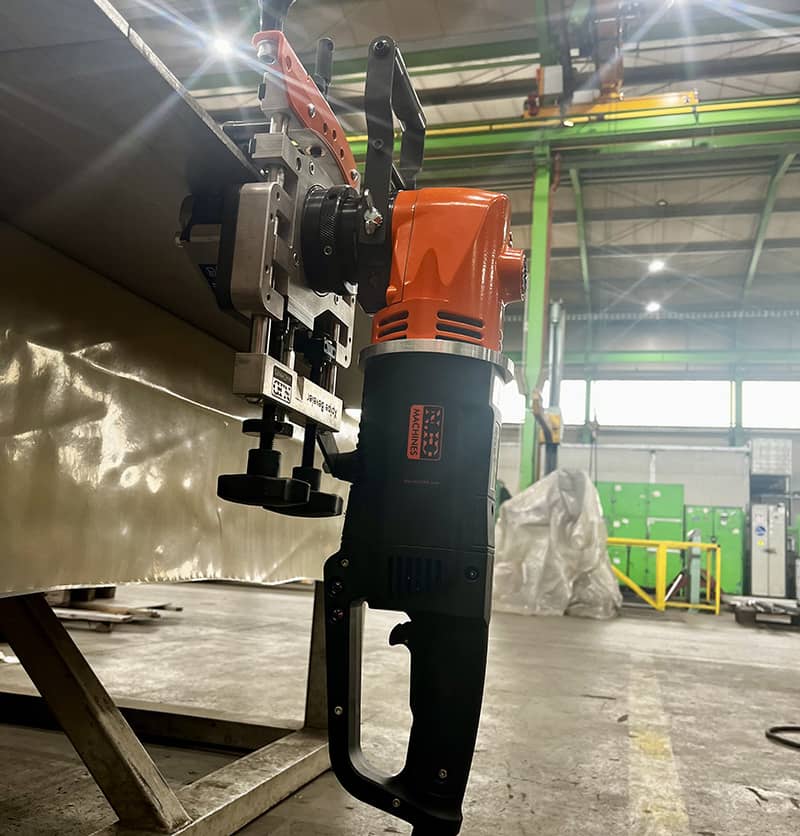

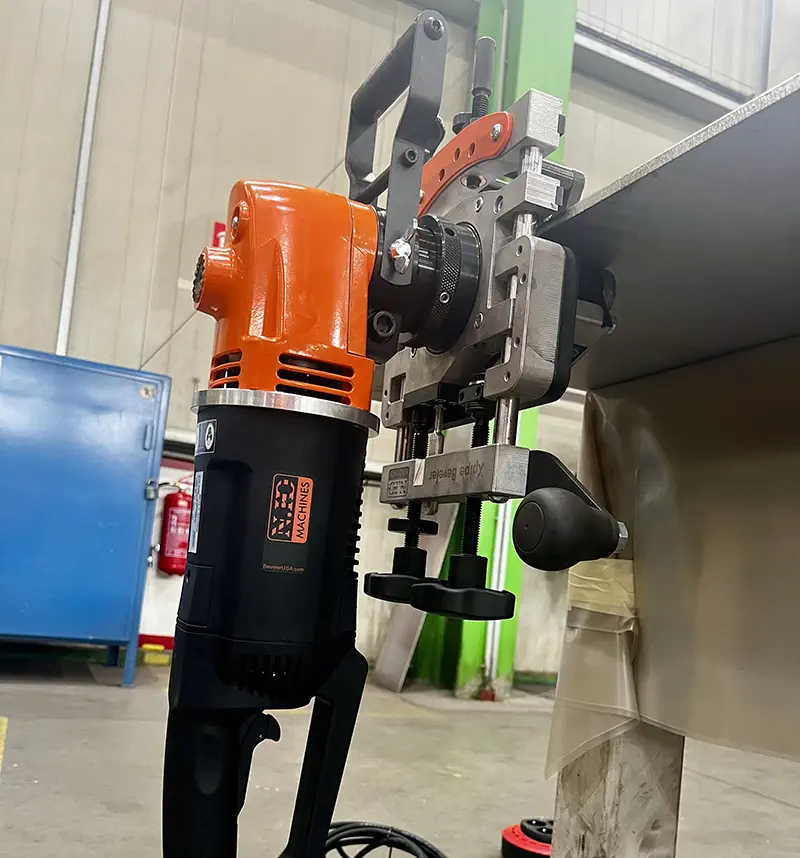

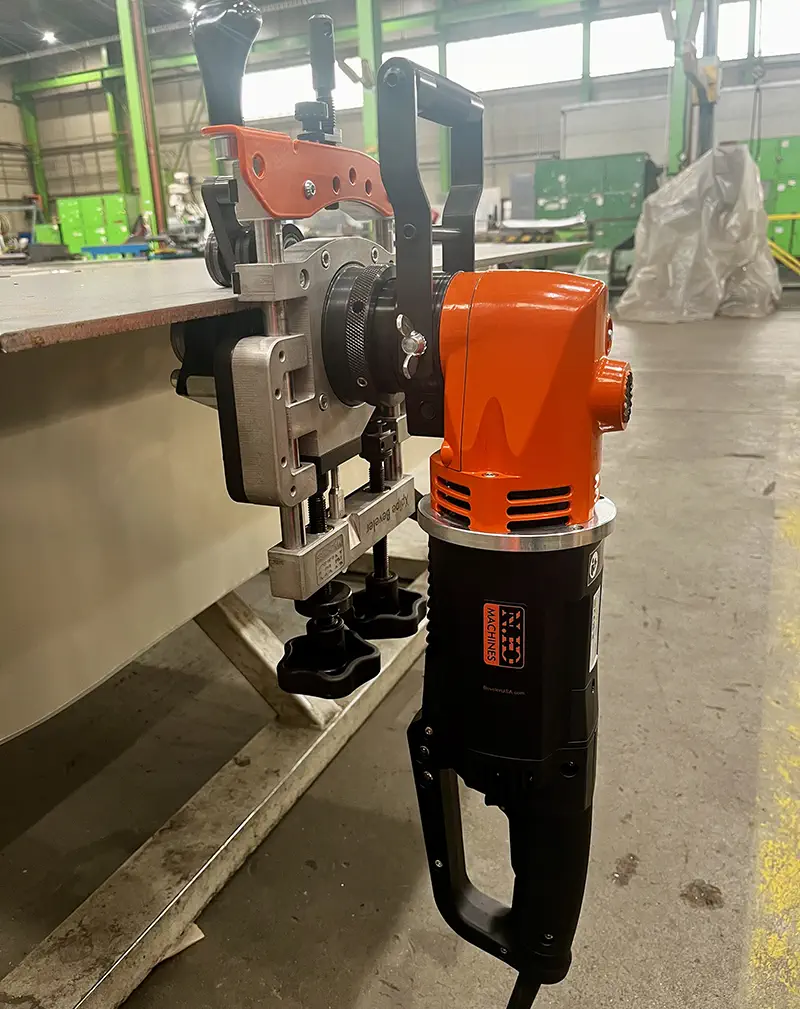

Beveler B15 INOX SET

Precision Hand-Guided Machine for Stainless Steel and Straight Edge Applications

• The B15 INOX is a manually operated bevelling machine specifically engineered for machining stainless steel with high precision and durability.

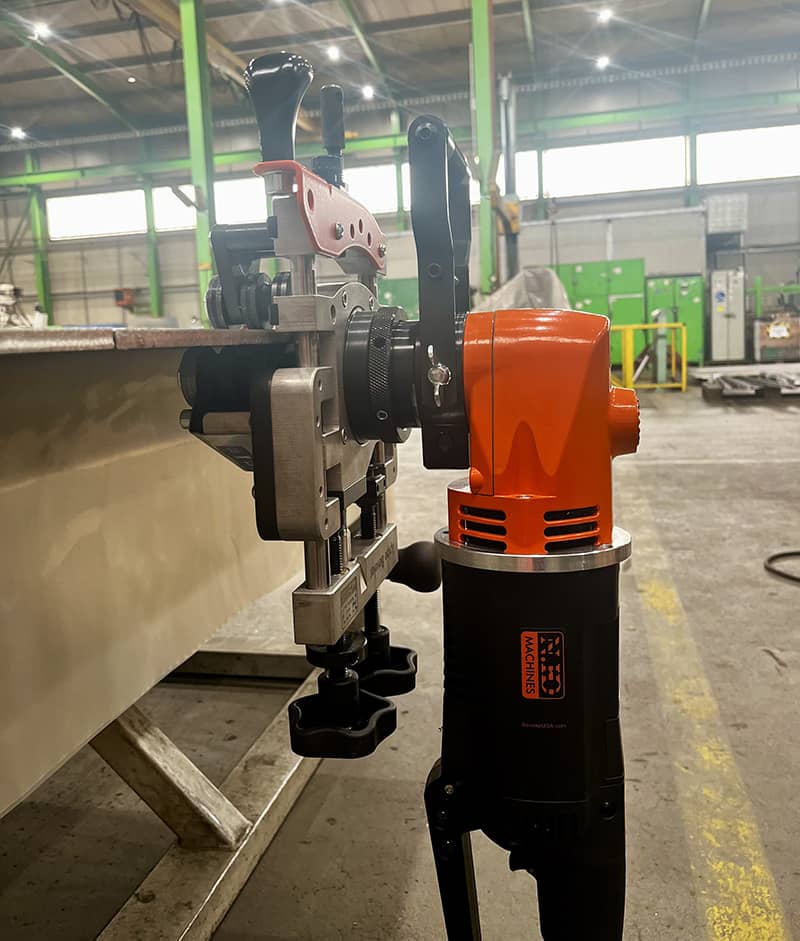

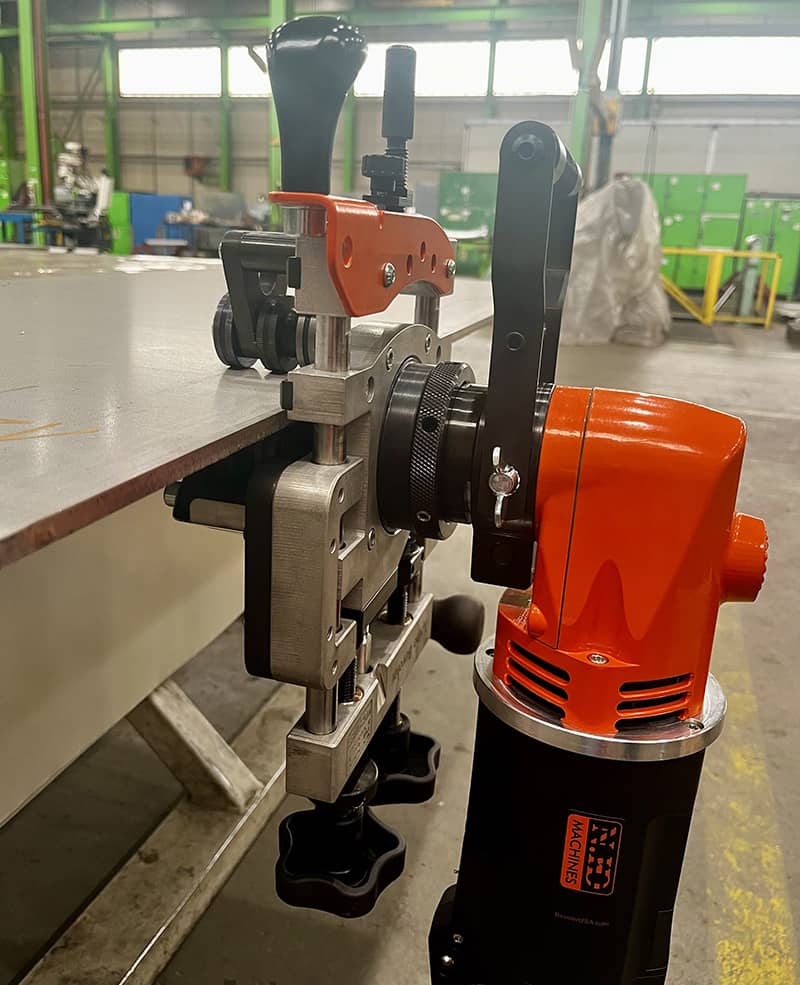

• Can be used independently for shaping curved workpieces or paired with the XPipe system for long, straight edge beveling with stable guidance.
• The machine’s mechanically reduced operating speed ensures longer service life for the cutting inserts.

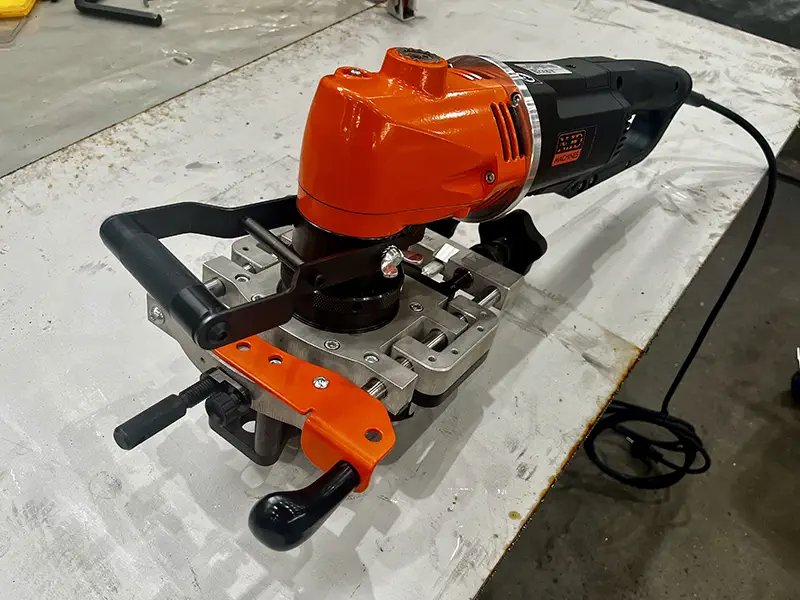

• Optional combination with XPipe offers smoother, more comfortable machine control over the material surface.

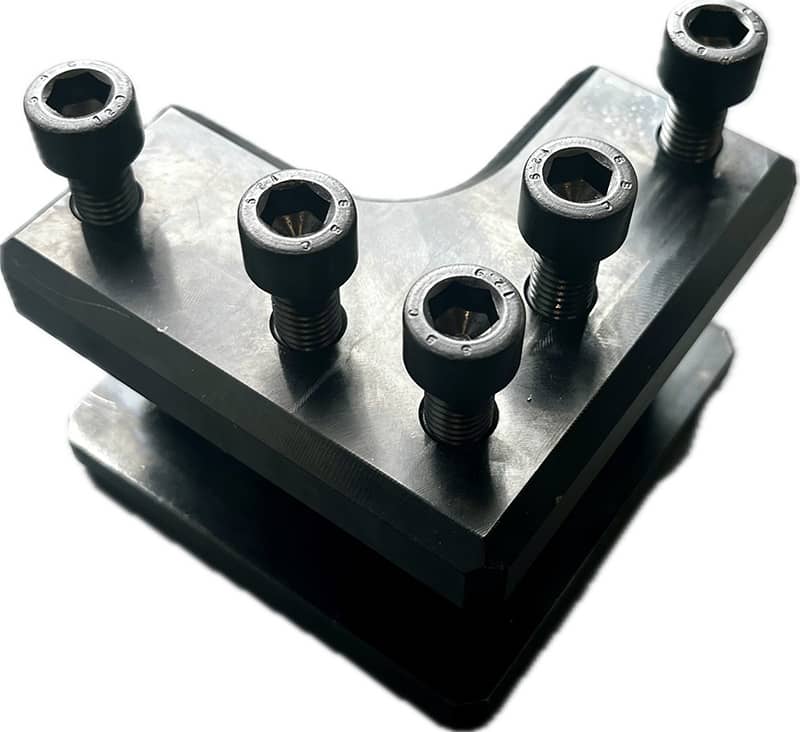

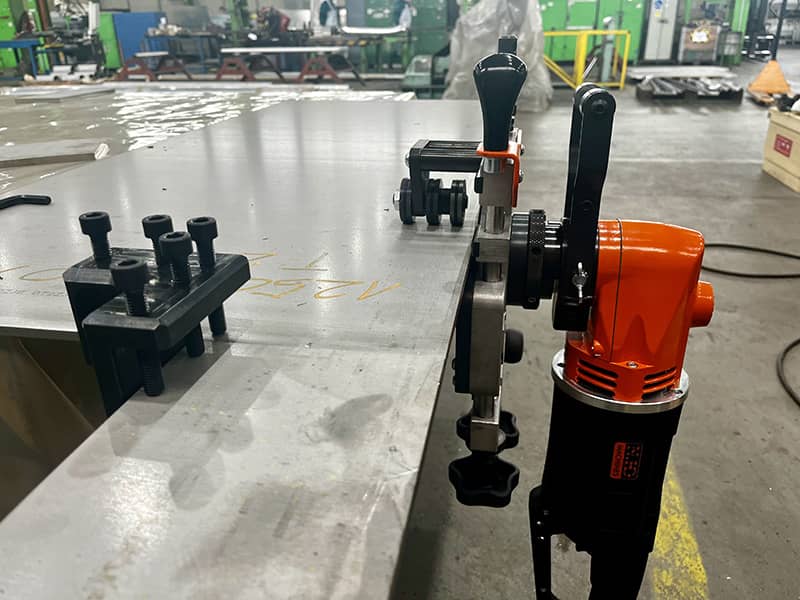

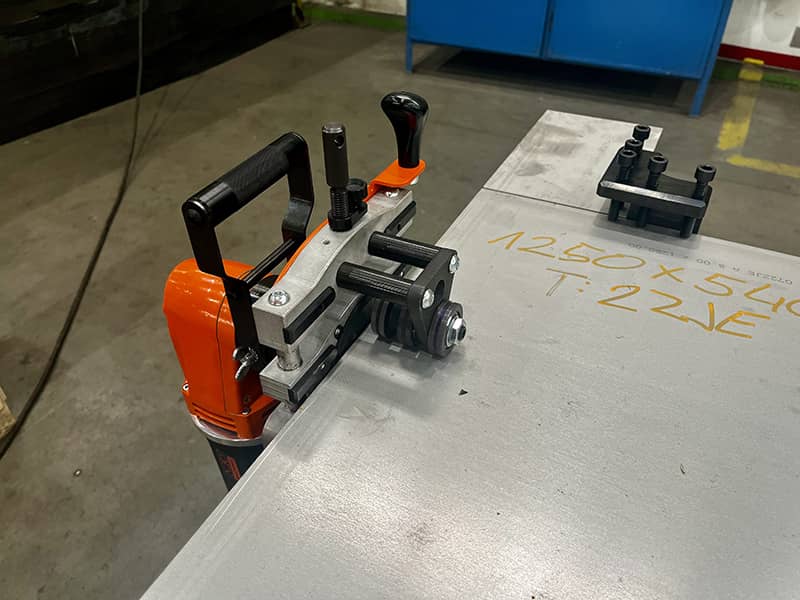

• Compatible with an optional inlet and outlet clamp set, allowing for safe and steady entry and exit of the machine on the workpiece.
• Includes a built-in LED load indicator to monitor machine performance during operation.
• Equipped with an LED alert that signals when carbon brush replacement is required.

Technical Data:

• Power: 2 850 W
• Voltage: 230V/50Hz (120V/60Hz)
• Revolutions: 1950/min-1
• Weight - set/individual: 18.75kg (41,3lb) / 10.5kg (23.1lb)
• Feeding: Manual

B15 INOX set:

• Sheets, profiles
  • Bevel width: 0 - 15mm (0.6")
  • Bevel angle: changeable cutting head 60°, 52.5°, 45°, 40°, 30°
  • Rounding the edges: R2.5mm, R3.5mm, R4mm
  • Material thickness: 3-20mm (0.11" - 0.78")

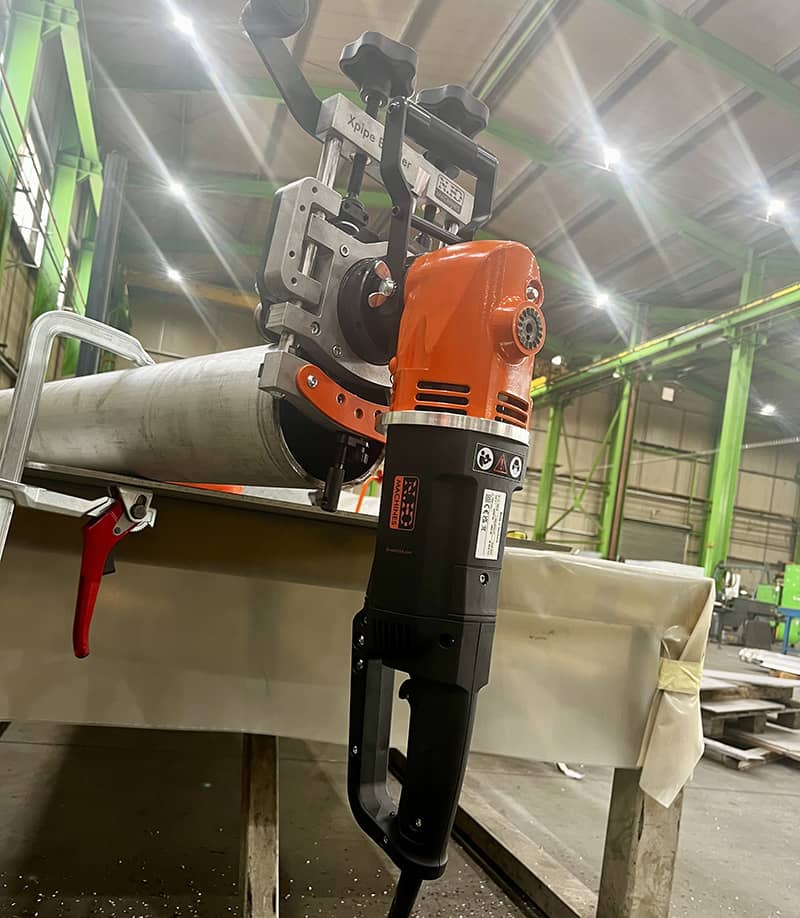

• Pipes
  • Bevel width: 0 - 15mm (0.6")
  • Bevel angle: changeable cutting head 60°, 52.5°, 45°, 40°, 30°
  • Rounding the edges: R2.5mm, R3.5mm, R4mm
  • Material thickness: External bevel: 2.5 - 15mm (0.10 - .60")
  • Inner bevel: 5-15mm (0.10" - .60")
  • Min. ⌀ pipes: Outer bevel: ≥85mm (3.36")
  • Inner bevel: ≥500mm (19.7")

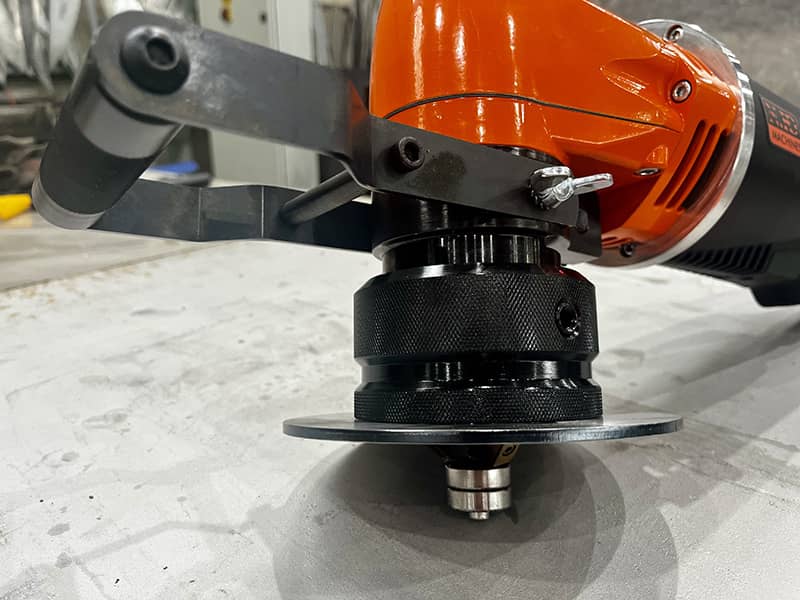

B15 INOX - Use without Xpipe:

• Sheets, profiles
  • Bevel width: 0-10mm (0.39")
  • Bevel angle: changeable cutting head 60°, 52.5°, 45°, 40°, 30°
  • Rounding the edges: R2.5mm, R3.5mm, R4mm
  • Material thickness: No limit
• Pipes
  • Bevel width: 0-10mm (0.39")
  • Bevel angle: changeable cutting head 60°, 52.5°, 45°, 40°, 30°
  • Rounding the edges: R2.5mm, R3.5mm, R4mm
  • Material thickness: No limit
  • Min. ⌀ pipes: Outer chamfer: Unlimited
  • Inner chamfer: According to cutting head
